Front Lower Arm (Front) Removal/Installation: Notes

  1. Remove the TWC (AJ) (only when removing/installing the right side front lower arm - front). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [AJ] ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

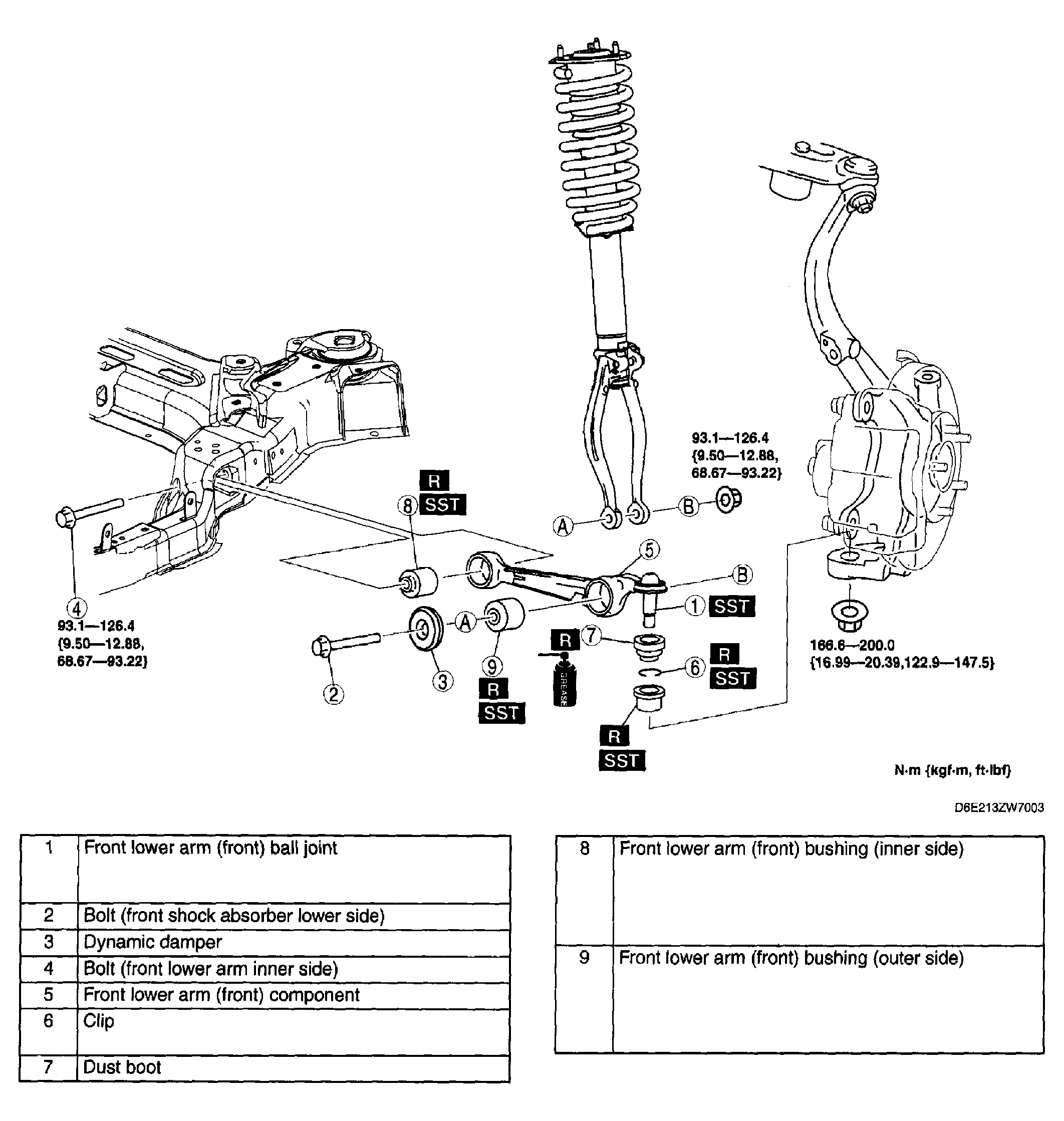

    Fig 1: Front Lower Arm (Front) & Torque Specification
    G04325443Courtesy of MAZDA MOTORS CORP.
