DTC B1884, B1890: Notes
DTC B1884, B1890 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC |
B1884 |
Passenger air bag deactivation (PAD) indicator circuit open or short to body ground |
| B1890 |
Passenger air bag deactivation (PAD) indicator circuit short to power supply |
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Malfunction in PAD indicator circuit
|
| POSSIBLE CAUSE |

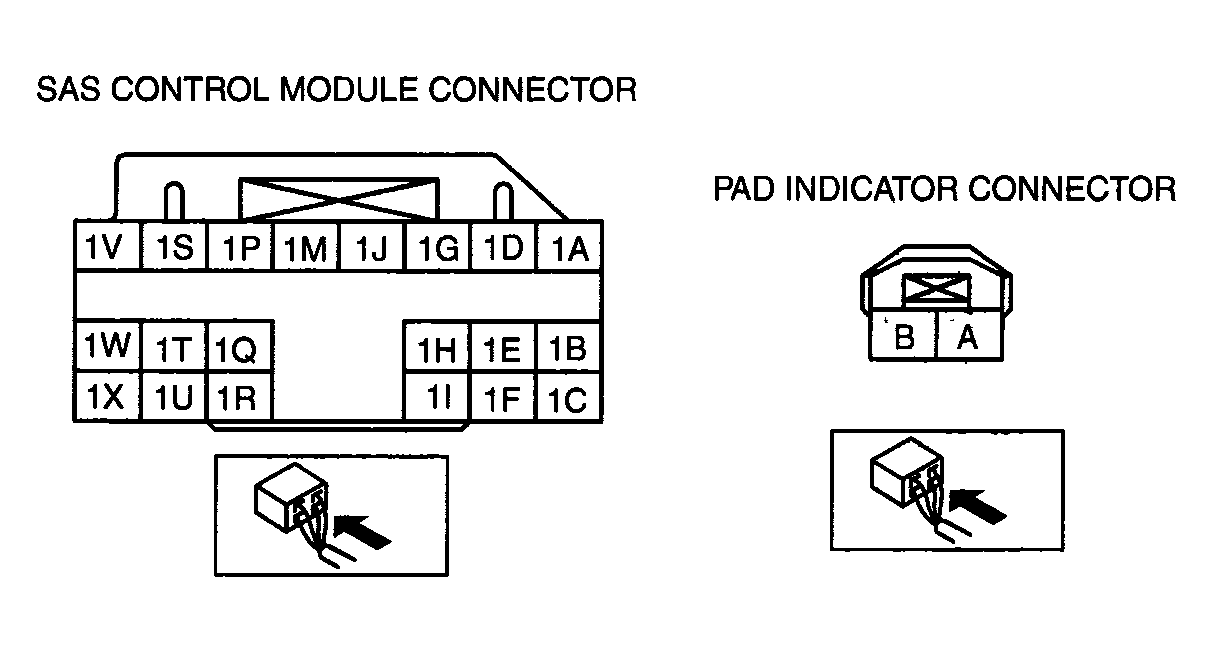

- Open or short circuit in wiring harness between PAD indicator and SAS control module
- Open circuit in wiring harness between battery and PAD indicator
- PAD indicator malfunction
- SAS control module malfunction
|
|
|
