DTC B1317, B1318: Notes
DTC B1317, B1318 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC |
B1317 |
SAS control module power supply voltage increases (16.1 V or more) |
| B1318 |
SAS control module power supply voltage decreases (less than 9 V) |
| DETECTION CONDITION |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection with only detection conditions may cause Injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- When the SAS control module power supply voltage is not within 9-16 V.
|
| POSSIBLE CAUSE |

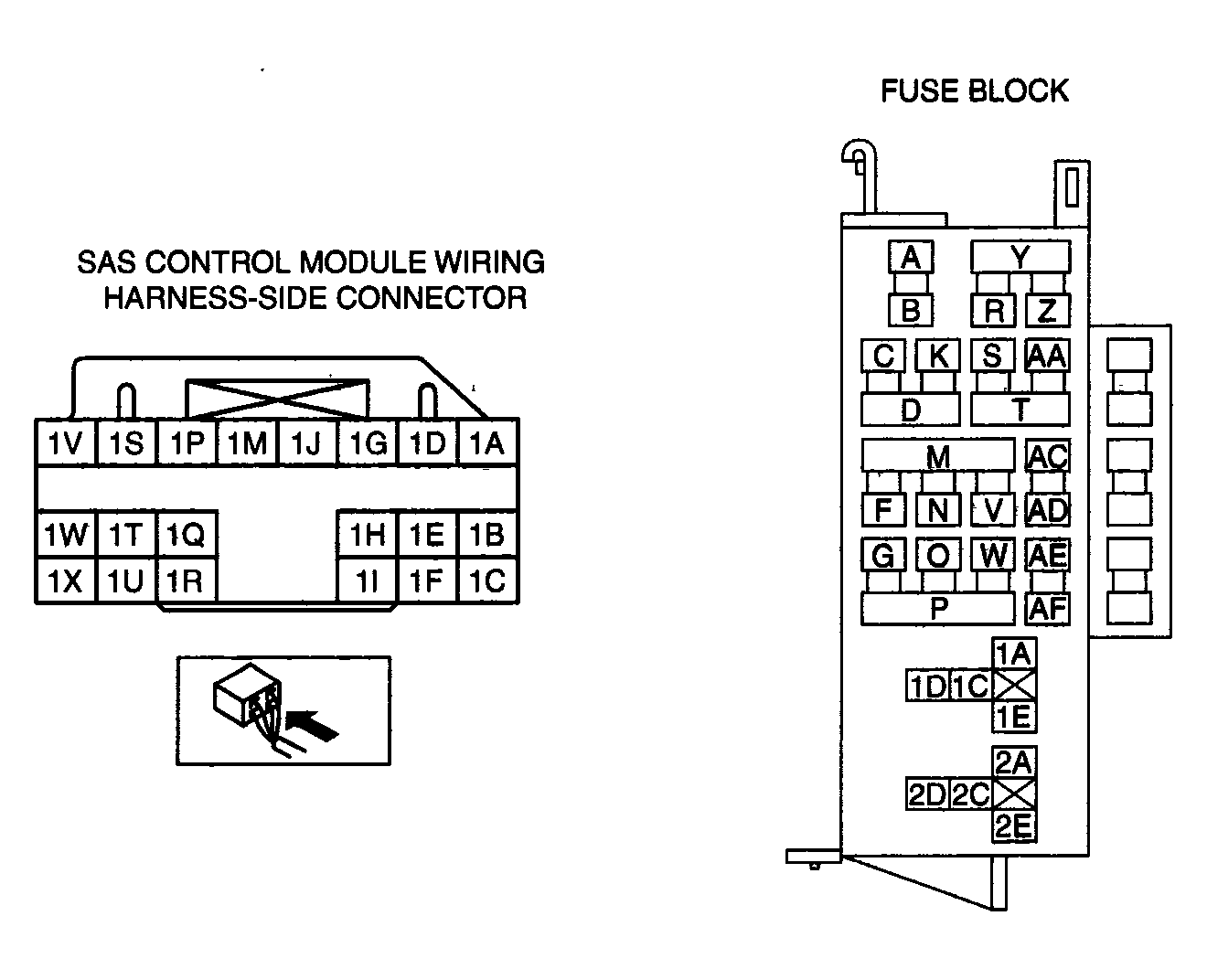

- Open or short circuit in wiring harness between battery and SAS control module
- SAS 10 A fuse malfunction
- Battery malfunction
- SAS control module malfunction
|
|
|
