Front Lower Arm Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

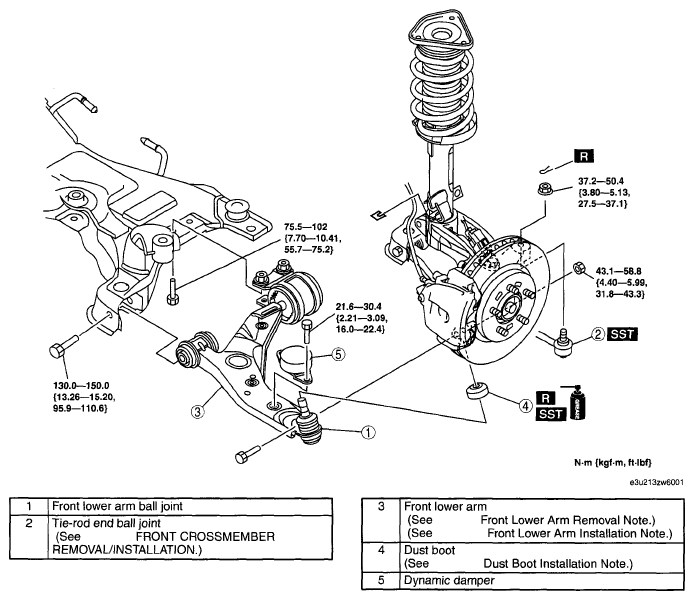

    Fig 1: Front Lower Arm Replacement Components With Torque Specifications
    G04955468Courtesy of MAZDA MOTORS CORP.
