Front CROSSMEMBER Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor wiring harness connector (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

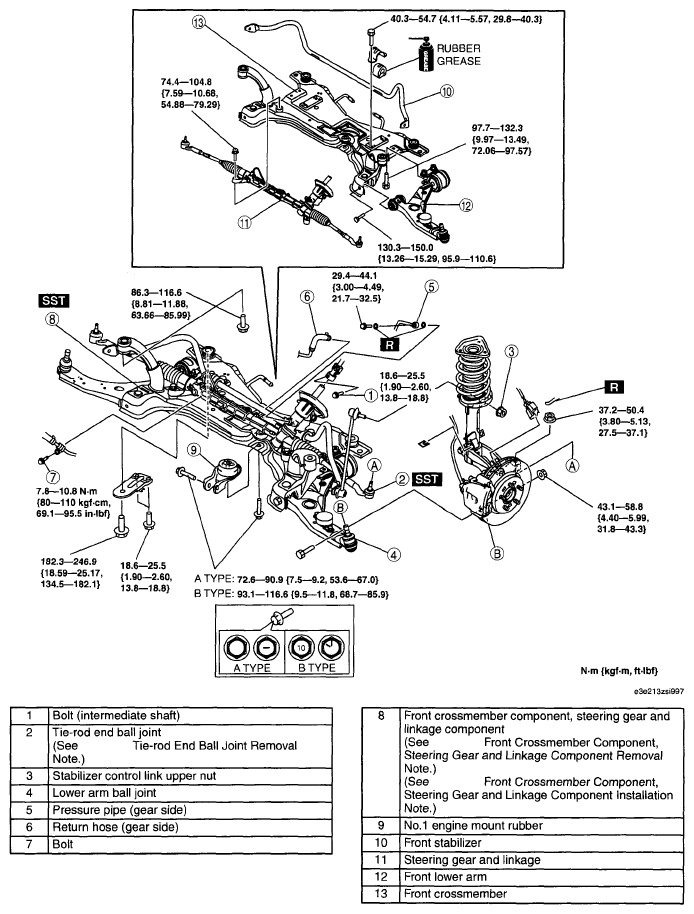

Fig 1: Front Crossmember Replacement Components With Torque Specifications
G04955480Courtesy of MAZDA MOTORS CORP.
