Doors And Liftgate Location Index

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

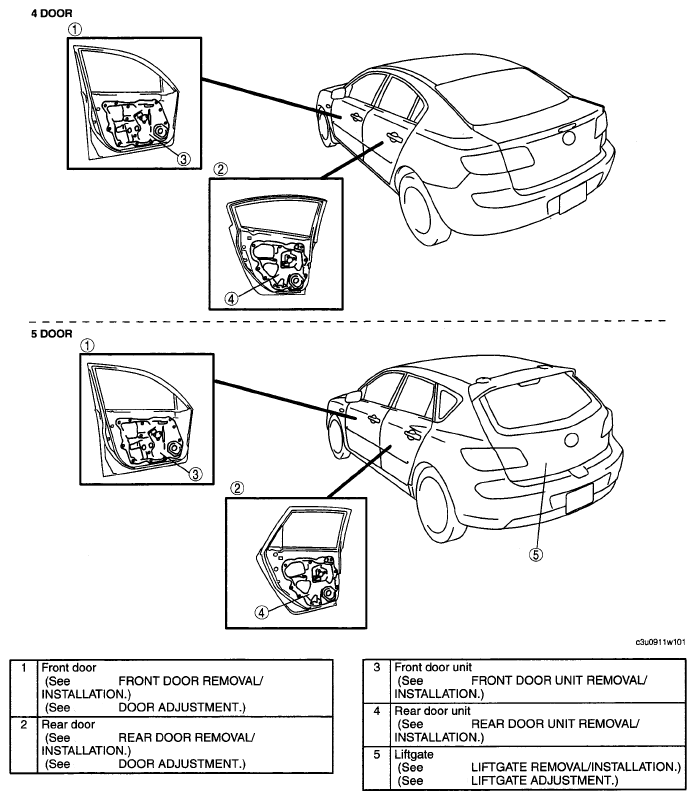

Fig 1: Identifying Doors And Liftgate Components
G04956690Courtesy of MAZDA MOTORS CORP.
