Reflector Removal Note

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws.
  2. Lift the reflector up in the direction of the arrow, then unhook it from the rear bumper.

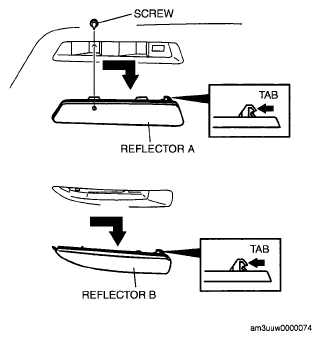

    Fig 1: Lifting Reflector Up In Direction Of Arrow
    G04956681Courtesy of MAZDA MOTORS CORP.
