Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Front side turn lights (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION .)
    4. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION ).
    5. Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    6. Side step molding (Vehicle with the side step molding) (See SIDE STEP MOLDING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

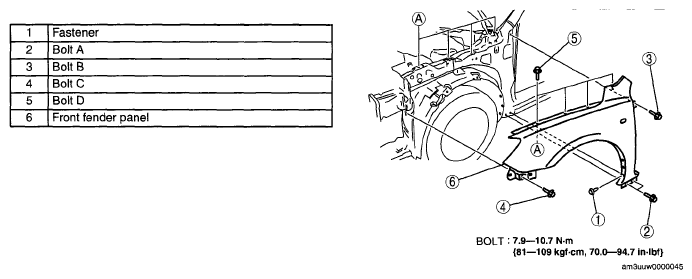

    Fig 1: Front Fender Panel Bolts And Fastener With Torque Specification
    G04956689Courtesy of MAZDA MOTORS CORP.
