Interior Trim Location Index

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

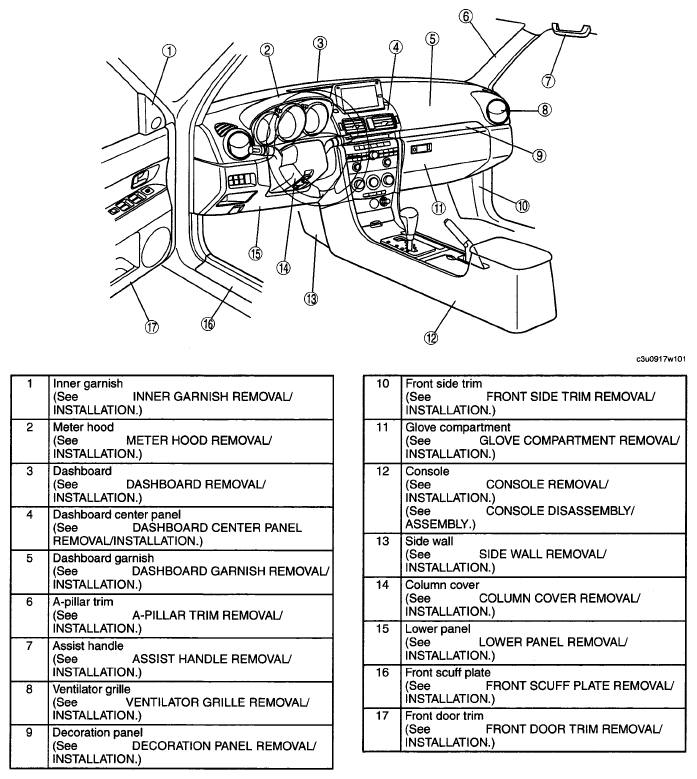

Fig 1: Identifying Interior Trim Components (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

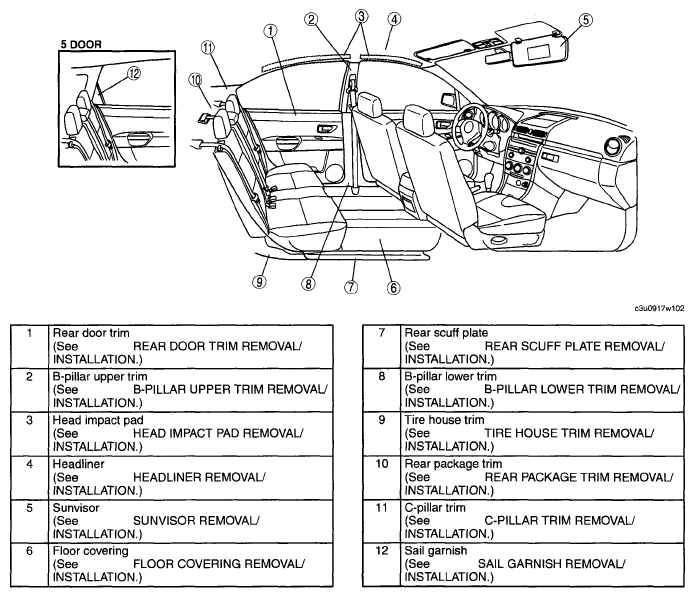

Fig 2: Identifying Interior Trim Components (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

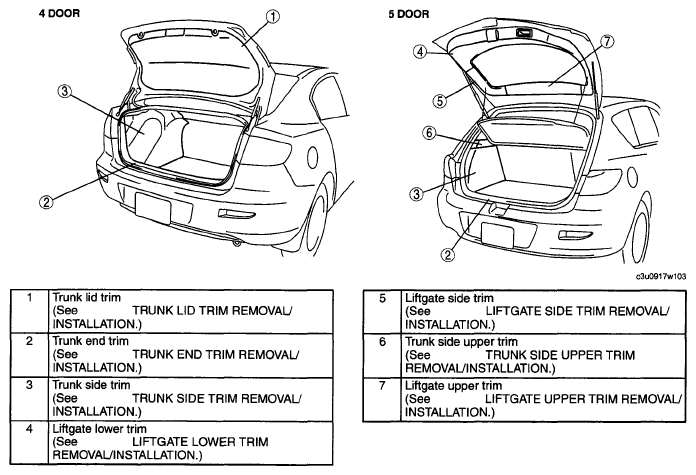

Fig 3: Identifying Interior Trim Components (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
