Seat Weight Sensor Control Module Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION ).

Turn the ignition switch to the LOCK position.
Disconnect the negative battery cable and wait for 1 min or more.
Remove the front passenger's seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

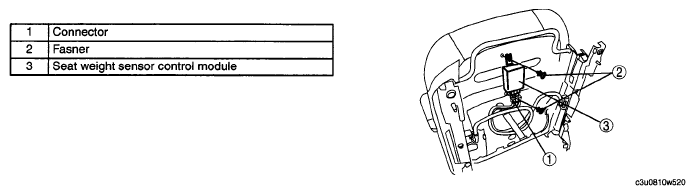

Fig 1: Identifying Seat Weight Sensor Control Module Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
