Driver-Side Air Bag Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS ). (See AIR BAG SYSTEM SERVICE CAUTIONS ).

Turn the ignition switch to the LOCK position.
Disconnect the negative battery cable and wait for 1 min or more.
Remove in the order indicated in the table.
Install in the reverse order of removal.
Turn the ignition switch to the ON position.
Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

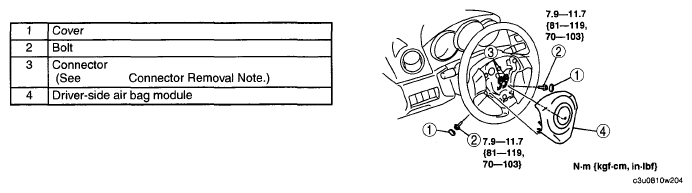

Fig 1: Driver-Side Air Bag Module Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
- If the air bag system warning light does not operate normally, refer to the ON-BOARD DIAGNOSTIC (RESTRAINTS) and perform inspection of the system.
