Condenser Removal/Installation: Notes
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Discharge the refrigerant. (See REFRIGERANT CHARGING .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [LF, L3] .) (See ENGINE COOLANT REPLACEMENT [L3 WITH TC] .)
- Remove the air cleaner. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [LF, L3] .) (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3 WITH TC] .)
- Remove the splash shield.
- Disconnect the cooler hose (HI) and cooler pipe. Do not allow remaining compressor oil in the refrigerant line to spill. (See
REFRIGERANT LINES REMOVAL/INSTALLATION [LF, L3] ).CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Disconnect the radiator hose from the radiator.
- Remove the cooling fan.

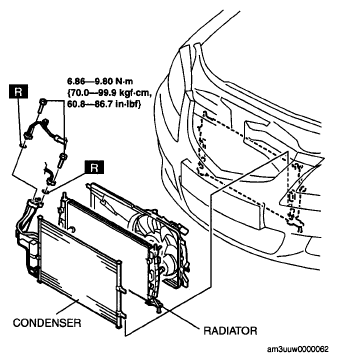

- Remove the radiator with the condenser installed. (See RADIATOR REMOVAL/INSTALLATION [LF, L3] .) (See RADIATOR REMOVAL/INSTALLATION [L3 WITH TC] .)
- Release the radiator hook and pull the condenser up, being careful not to allow remaining compressor oil in the condenser to spill. (See
CONDENSER INSTALLATION NOTE ).CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Install in the reverse order of removal.
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [LF, L3] .) (See ENGINE COOLANT LEAKAGE INSPECTION [L3 WITH TC] .)
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
