Climate Control Unit Disassembly/Assembly [Manual Air Conditioner]: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

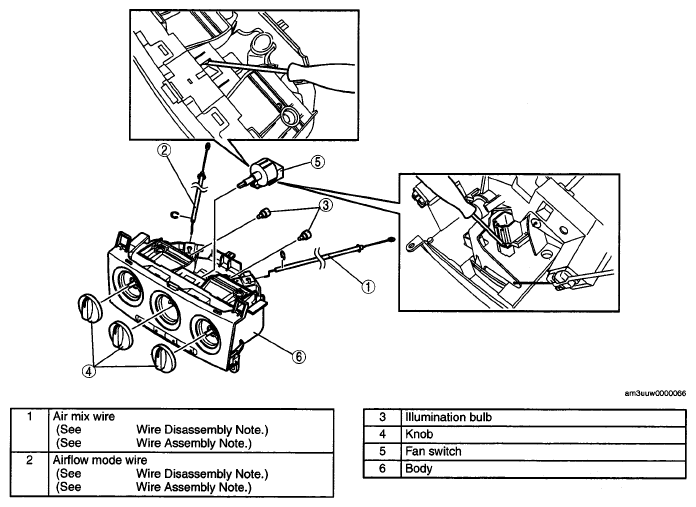

    Fig 1: Identifying Climate Control Unit Components
    G04956403Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
