No.1 Additional Key Registration Procedure (Using Two Valid Keys) Conditions: Procedure

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

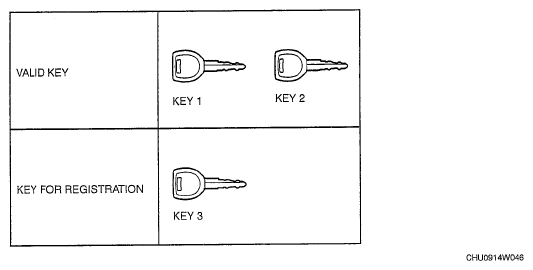

Fig 1: Identifying Valid Key And Key For Registration

Courtesy of MAZDA MOTORS CORP.

Have one key (key 3) ready for registration.
Using key 1, turn the ignition switch to the ON position.
Verify that the security light illuminates for approx. 3 s and then goes out.
Using key 1, turn the ignition switch to the LOCK position within approx. 4 s after the security light goes out.
Remove key 1
Repeat Steps 2-5 using key 2.
Repeat Steps 2-5 using key 3.
If additional keys need to be registered, repeat Steps 1-7 in the same manner as key 3.
