Door Lock-link Switch

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the door lock actuator connector.
  2. Inspect for continuity between the door lock-link switch terminals.
    • If not as specified, replace the door lock actuator.
    Fig 1: Door Lock-Link Switch Continuity Chart
    G04931313Courtesy of MAZDA MOTORS CORP.

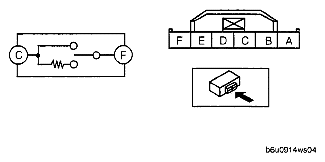

    Fig 2: Identifying Door Lock-Link Switch Connector Terminals With Circuit
    G04931314Courtesy of MAZDA MOTORS CORP.
