Rear Differential Disassembly: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The engine stand is equipped with a self-lock mechanism, however, if the rear differential is tilted, the self-lock mechanism could become inoperative. If the rear differential unexpectedly rotates, it could cause injury, therefore do not maintain the rear differential tilted. When turning the rear differential, grasp the rotation handle firmly.
  1. Disassemble in the order indicated in Fig 1 .

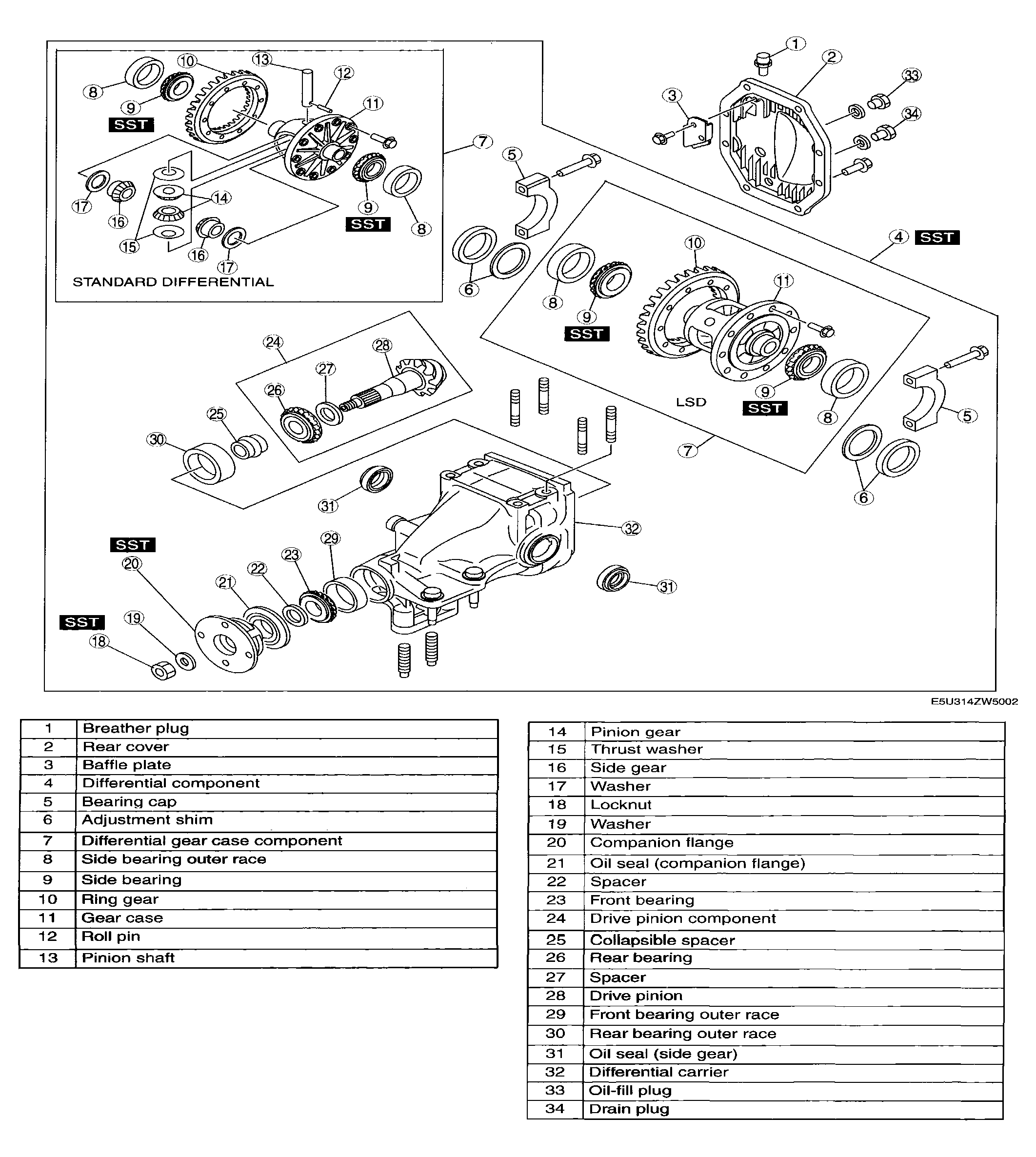

    Fig 1: Exploded View Of Rear Differential Components
    G04318257Courtesy of MAZDA MOTORS CORP.
