Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the member and the middle pipe.

    (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF] .)

  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

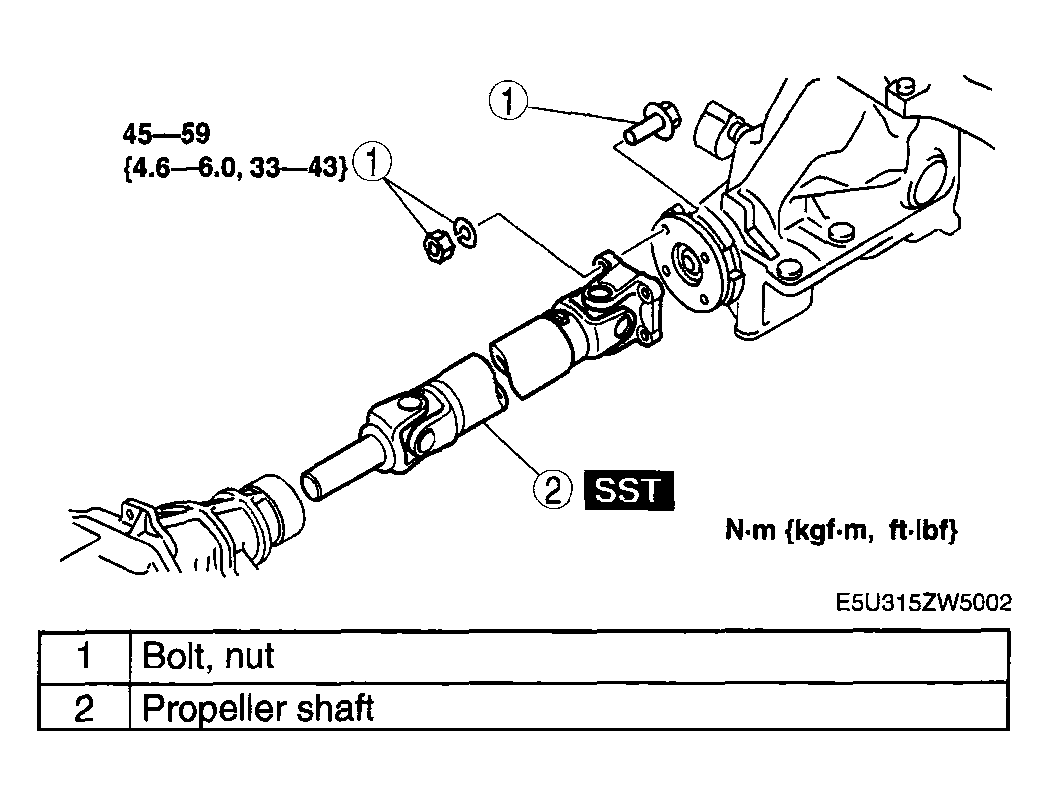

    Fig 1: Removing/Installing Propeller Shaft With Torque Specifications
    G04318296Courtesy of MAZDA MOTORS CORP.
