Trunk Compartment Light Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the trunk compartment light.
  4. Disconnect the trunk compartment light connector.
  5. Remove the trunk compartment light bulb.
  6. Install in the reverse order of removal.

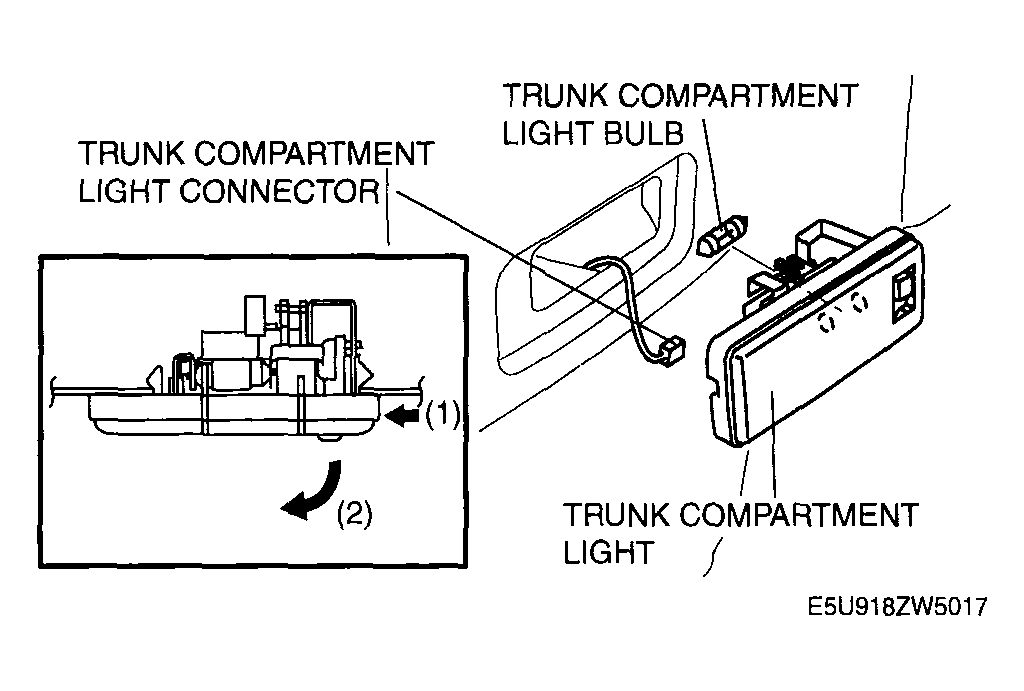

    Fig 1: Removing Trunk Compartment Light Bulb
    G04323735Courtesy of MAZDA MOTORS CORP.
