Ignition Coil Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the charge air cooler. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

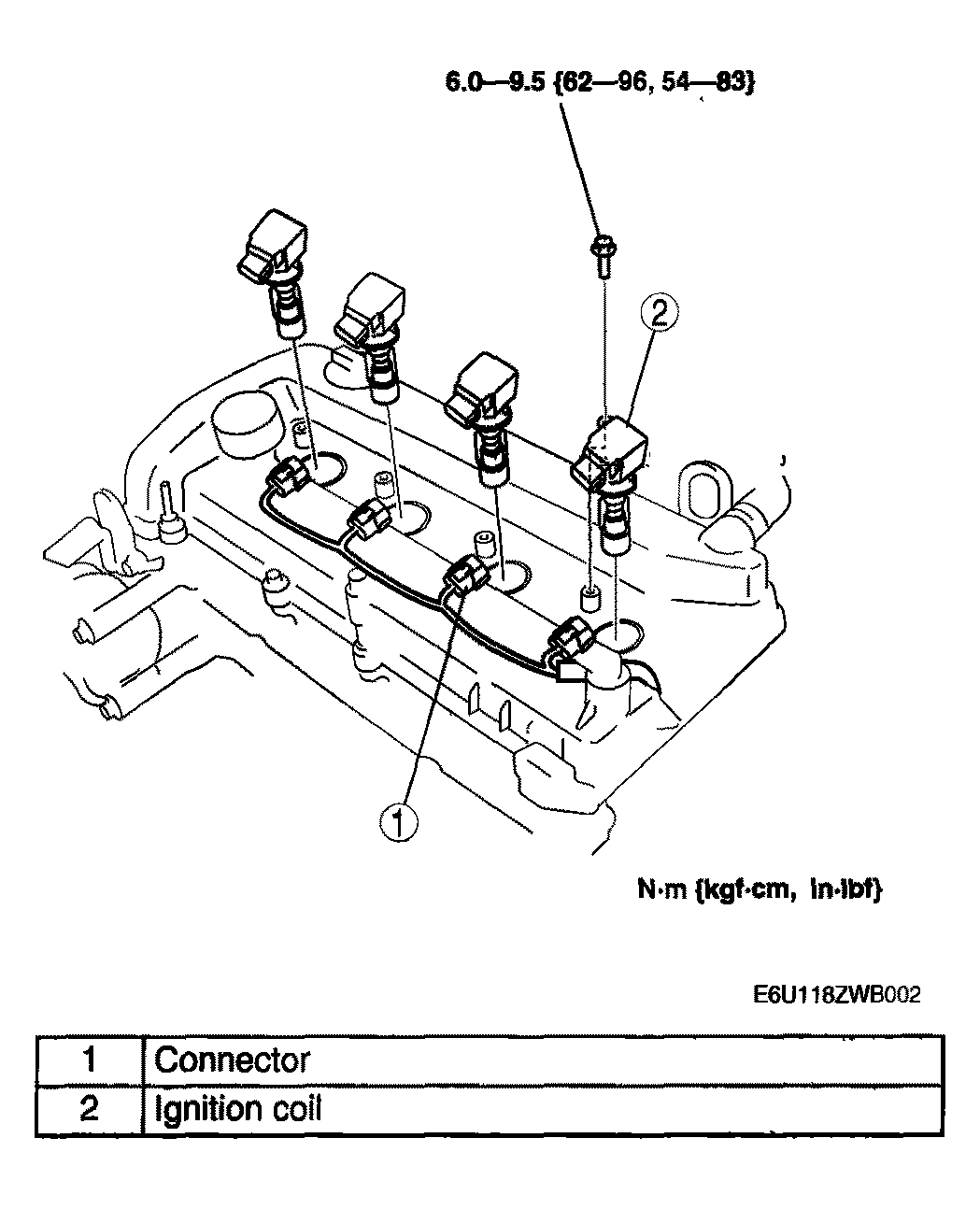

    Fig 1: Identifying Ignition Coil
    G04325059Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
