Engine Room Side

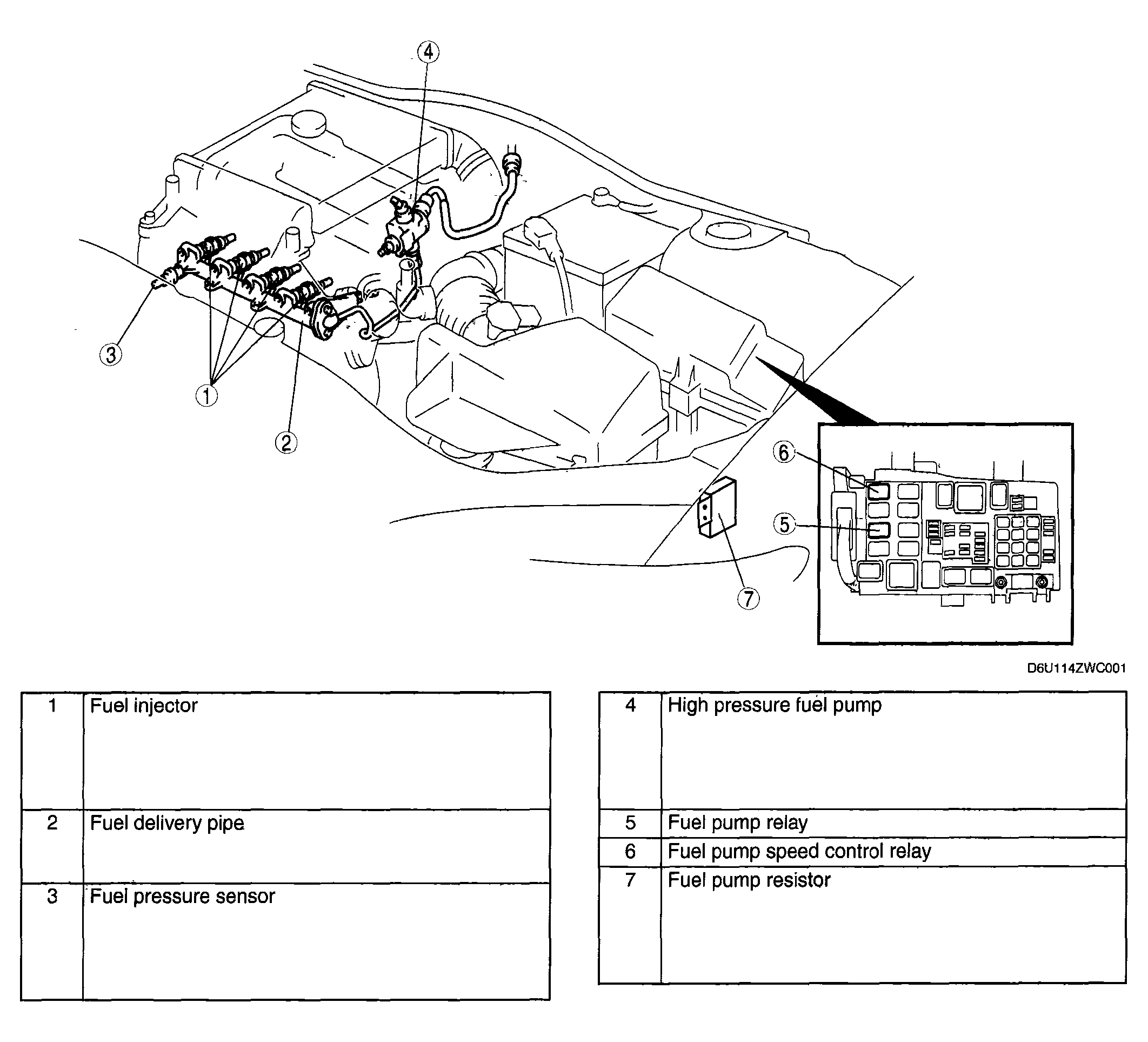

Fig 1: Identifying Fuel System Components Location (Engine Room Side)

G04324851

Courtesy of MAZDA MOTORS CORP.
