Variable Swirl Shutter Valve Switch Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
Open circuit
If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
Variable swirl shutter valve switch terminal A and PCM terminal 1N
Variable swirl shutter valve switch terminal B and body ground.

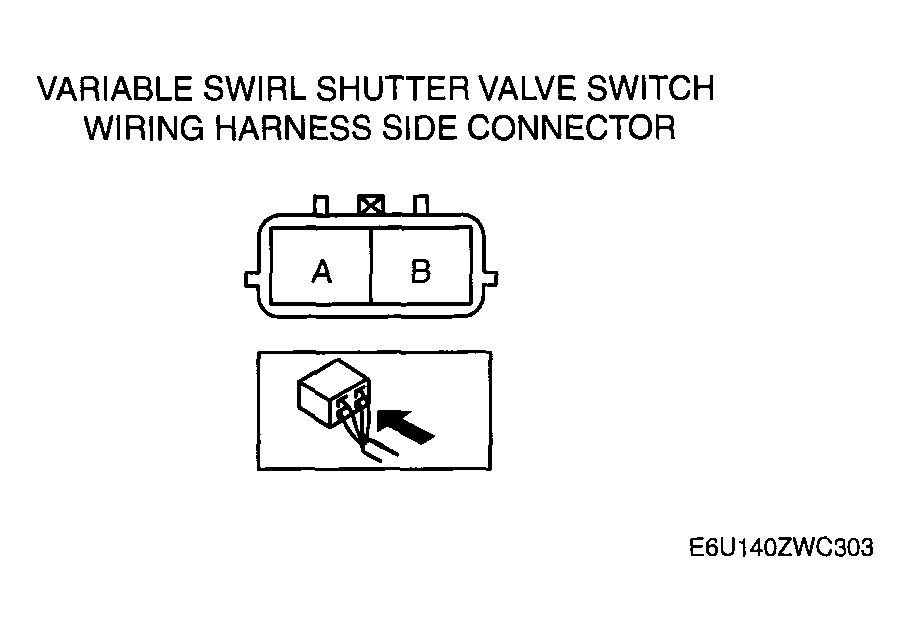

Fig 1: Identifying Variable Swirl Shutter Valve Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
