Power Steering Pressure (PSP) Switch Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
Open circuit
If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
PSP switch terminal and PCM terminal 1Z

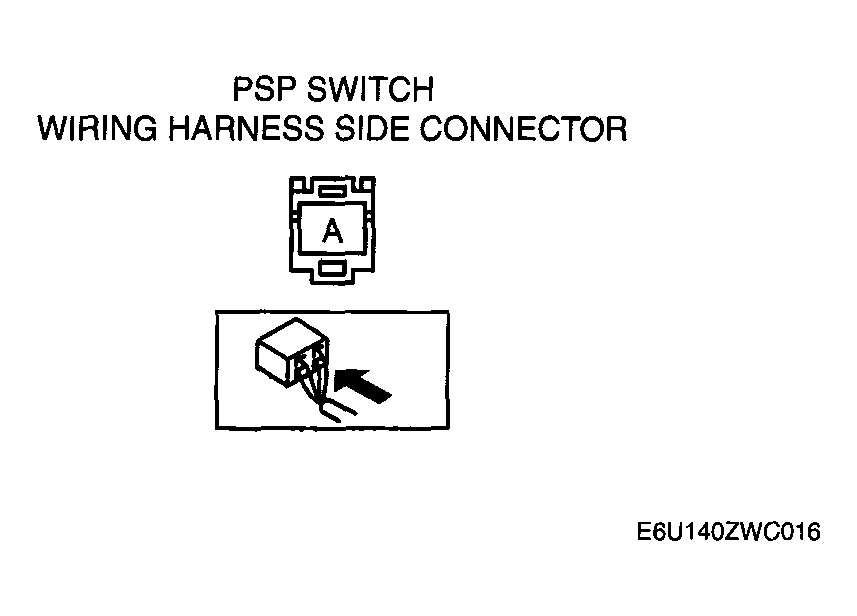

Fig 1: Identifying Power Steering Pressure (PSP) Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
