Open circuit

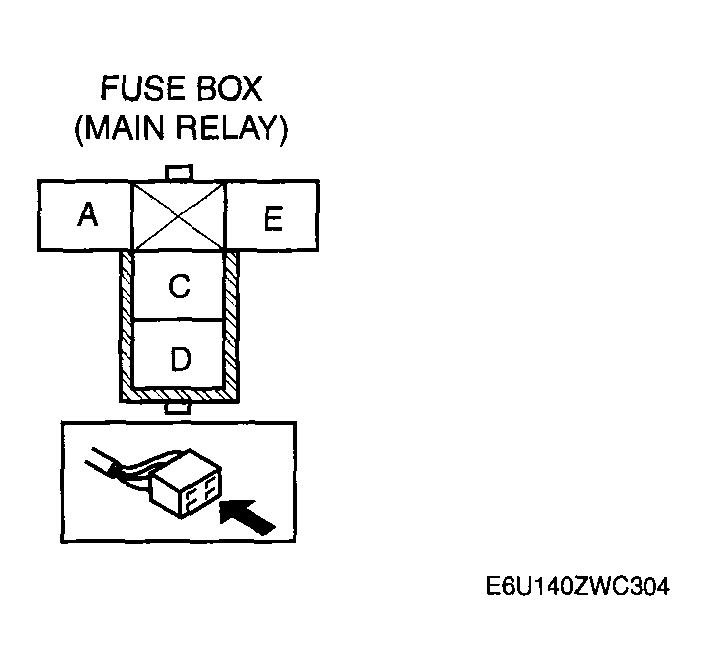

Fig 1: Identifying Fuse Box Main Relay

Courtesy of MAZDA MOTORS CORP.

If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- MAF sensor terminal A and main relay terminal C
- MAF sensor terminal B and PCM terminal 11
- MAF sensor terminal C and PCM terminal 1P
