6 Mazdaspeed
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (L3 With TC)
>>
Knock Sensor (KS) Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
Open circuit
If there is no continuity there is an open circuit. Repair or replace the wiring harness.
KS terminal A and PCM terminal 2S
KS terminal B and PCM terminal 2P

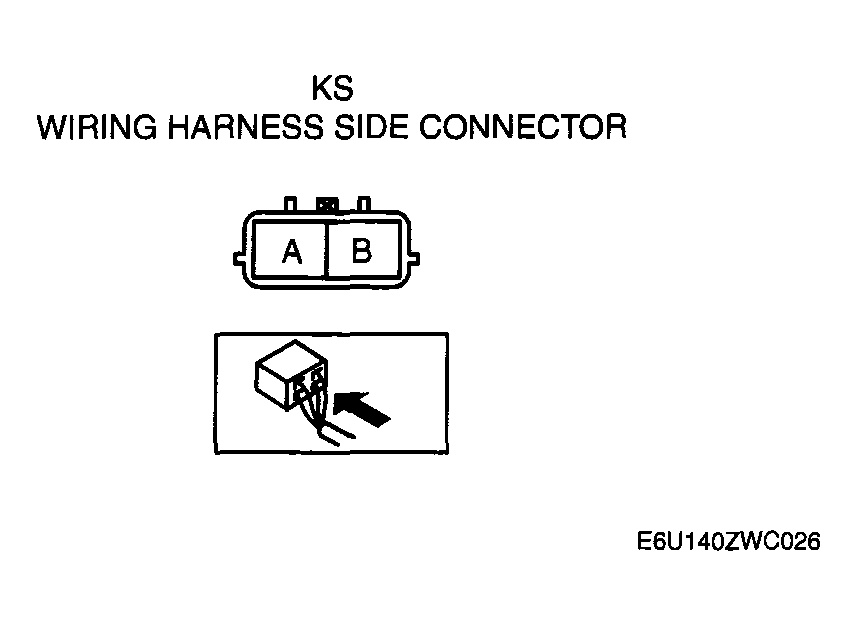

Fig 1: Identifying KS Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
