Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (L3 With TC)
>>
Engine Coolant Temperature (ECT) Sensor Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
Open circuit
If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
ECT sensor terminal A and PCM terminal 1M
ECT sensor terminal B and PCM terminal 2H

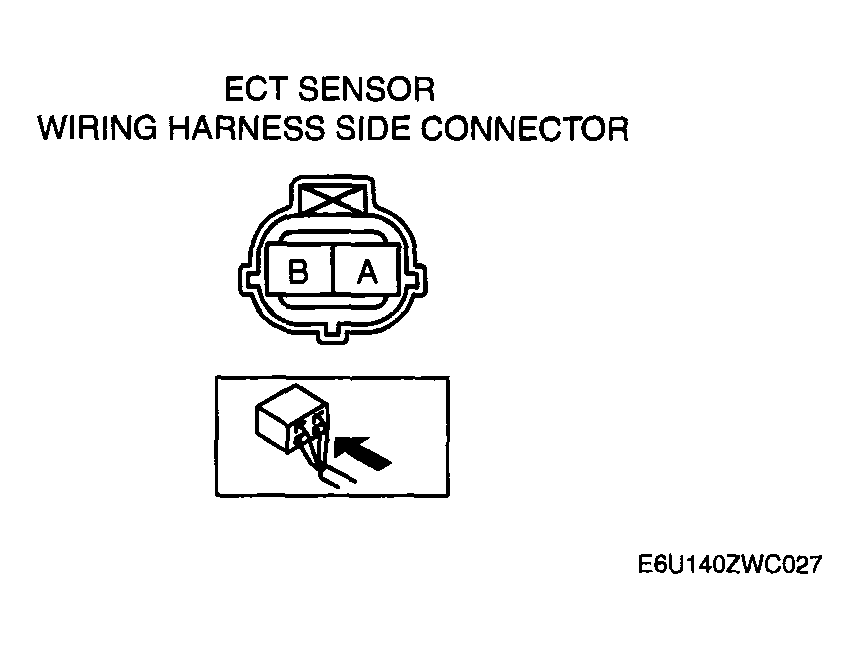

Fig 1: Identifying ECT Sensor Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
