Lubrication System Location Index

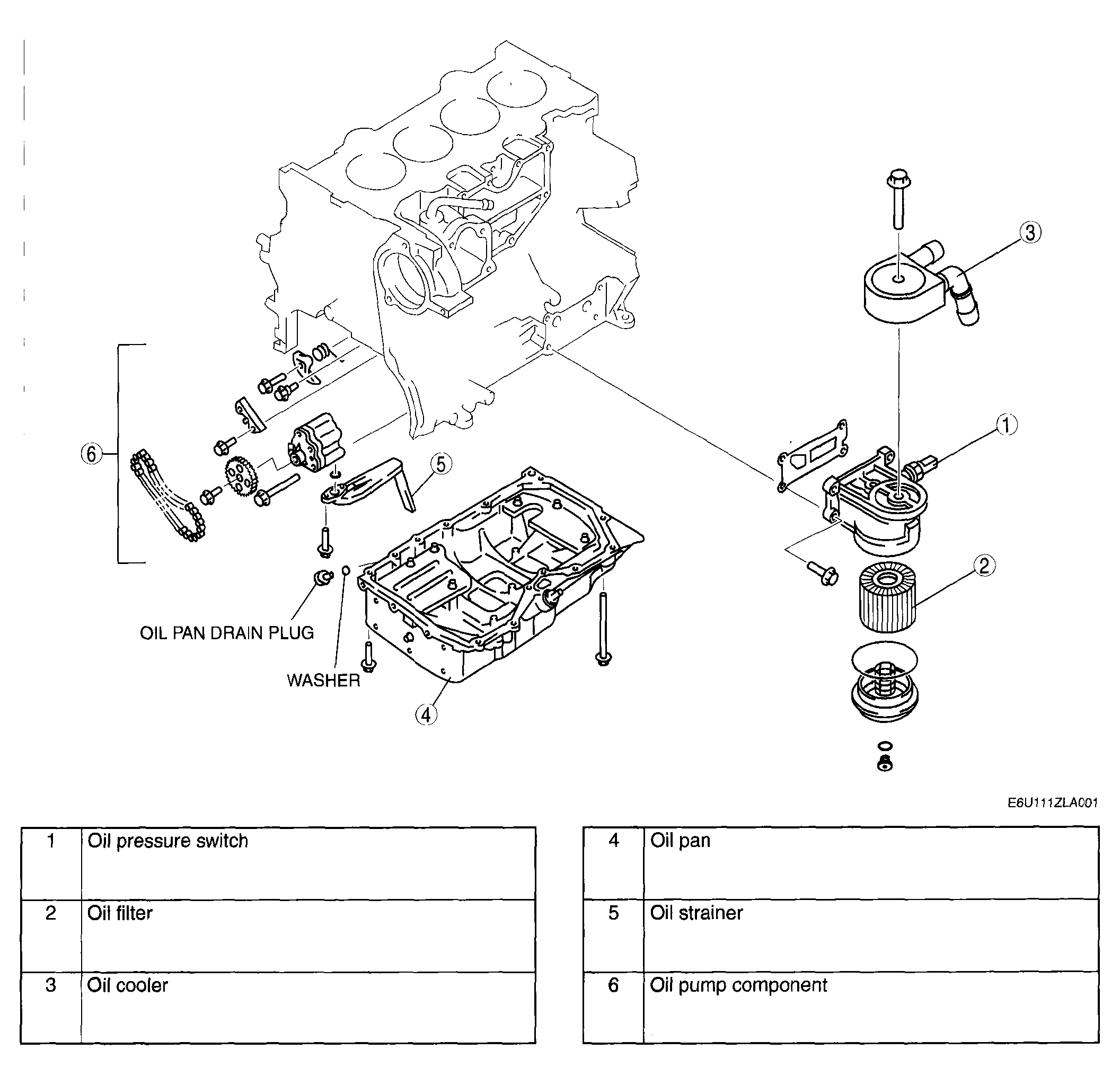

Fig 1: Lubrication System Component Location [L3 With TC]

G04324641

Courtesy of MAZDA MOTORS CORP.
