Generator Disassembly/Assembly [L3 With TC]: Notes

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

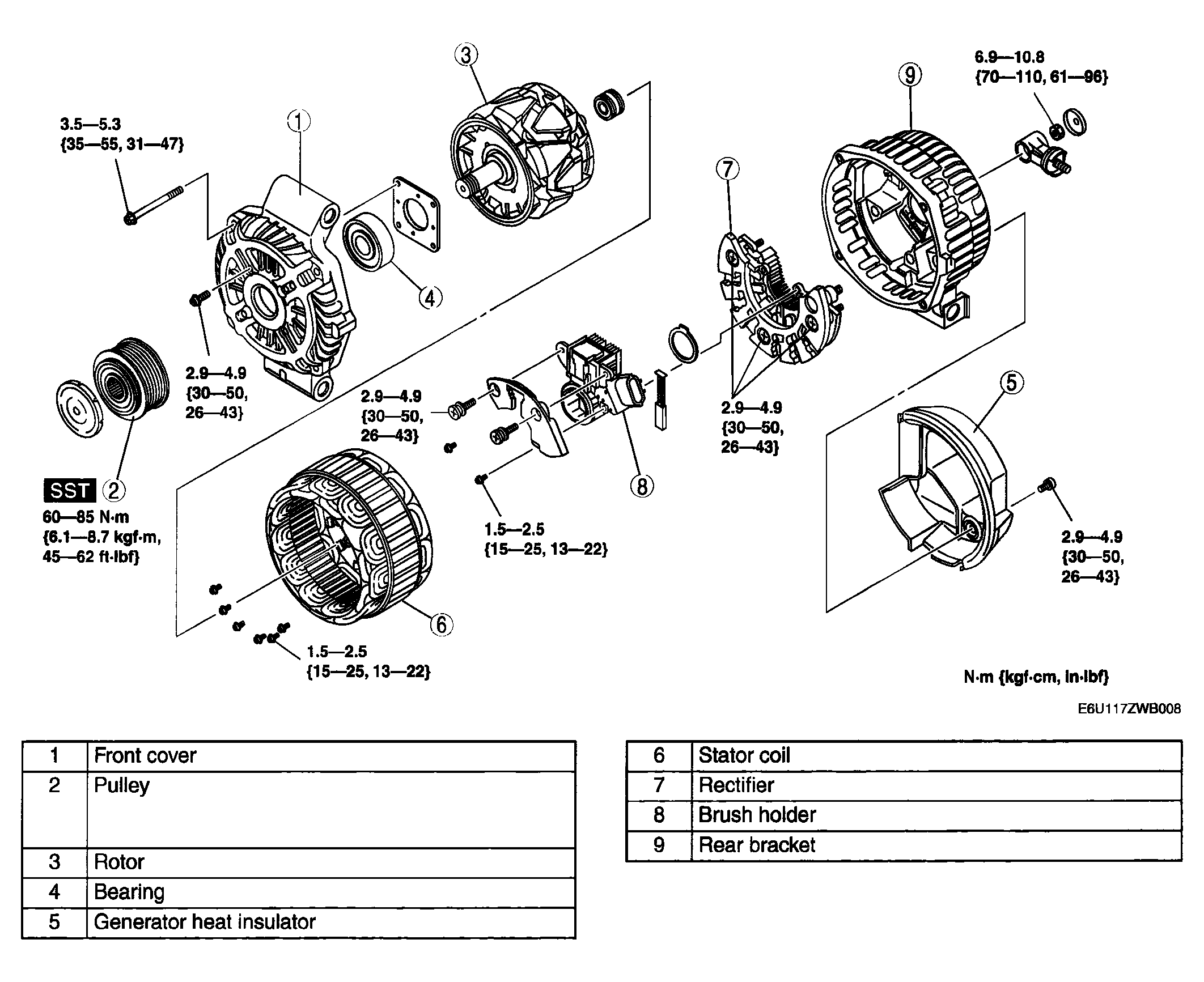

    Fig 1: Exploded View Of Generator & Torque Specification
    G04325048Courtesy of MAZDA MOTORS CORP.
