Symptom Troubleshooting (Power Window System)
>>
Power Window System Wiring Diagram
>>
Power Window Main Switch
Power Window Main Switch

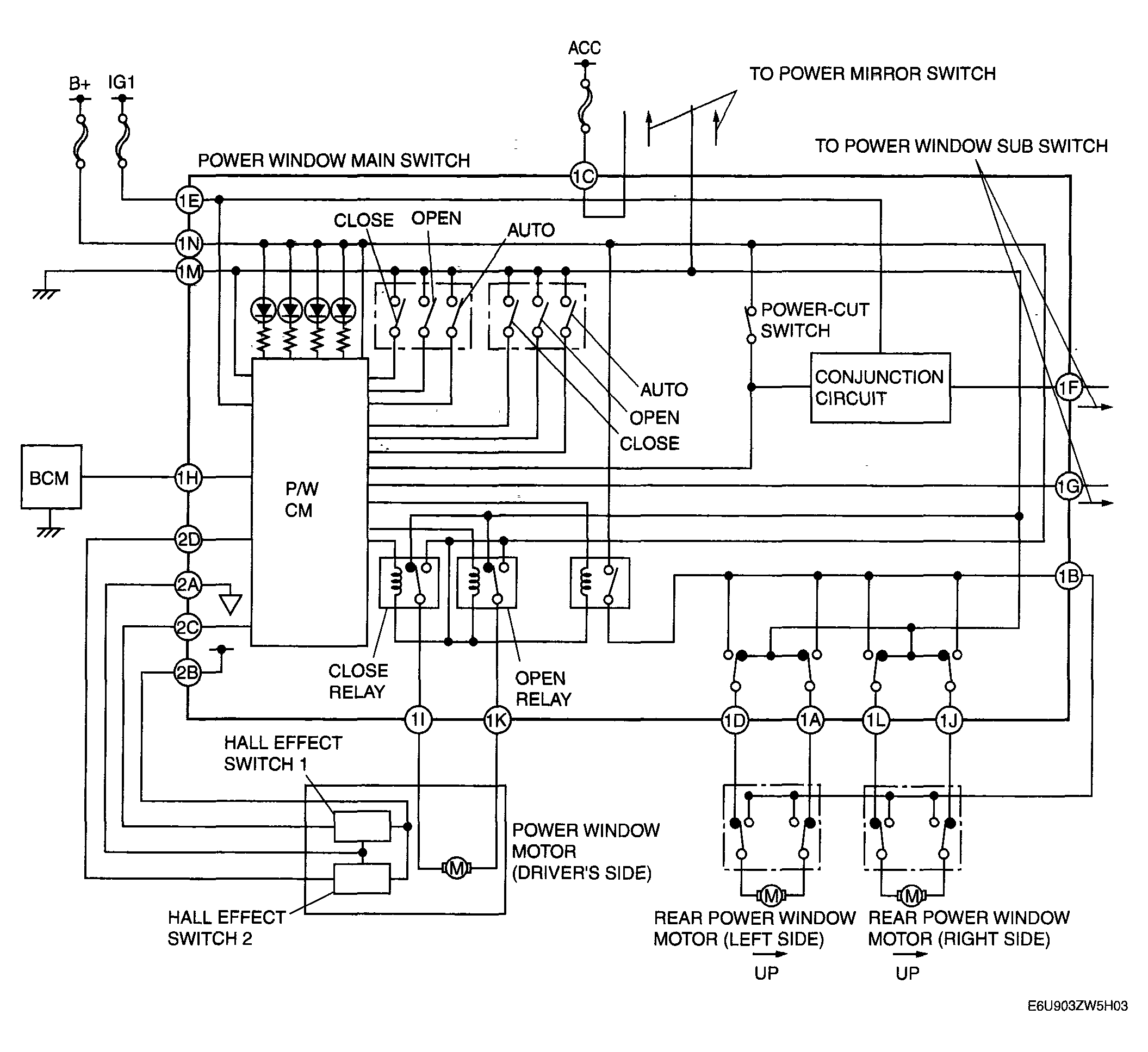

Fig 1: Power Window Main Switch - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
