Front Tilt Motor Removal/Installation [L3 With TC]: Notes

  1. Operate the power seat switch and move the seat back to the full-upright position.
  2. Disconnect the negative battery cable.
  3. Remove the driver's side front seat. (See FRONT SEAT REMOVAL/INSTALLATION [L3 WITH TC] )
  4. Remove the front cover (No.1, No.2) and side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY [L3 WITH TC] )
  5. Remove the seat cushion. (See FRONT SEAT DISASSEMBLY/ASSEMBLY [L3 WITH TC] )
  6. Remove in the order indicated in the table.

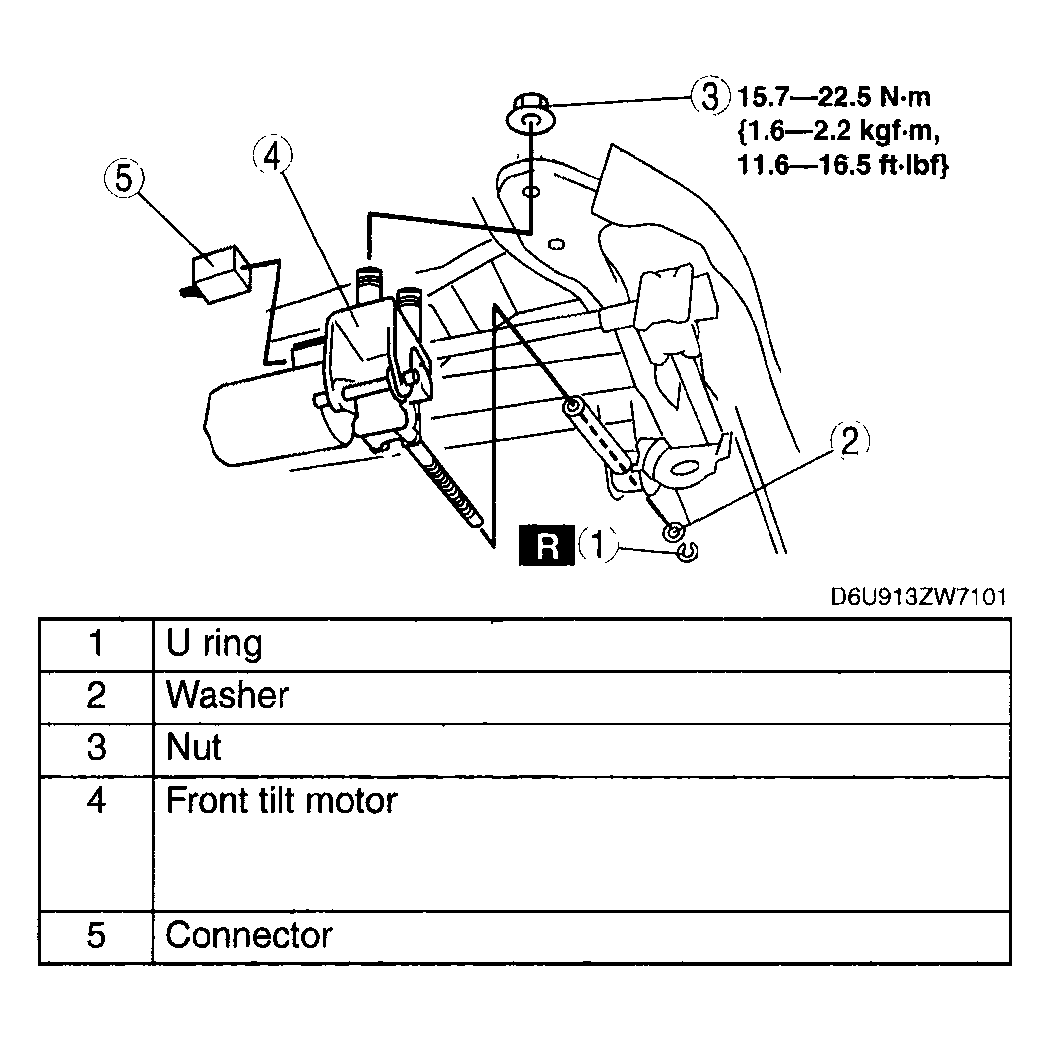

    Fig 1: Front Tilt Motor & Torque Specification
    G04327269
  7. Install in the reverse order of removal.
