Side Panel Removal/Installation

  1. Disengage clips using a tape-wrapped flathead screwdriver.
  2. Pull the side panel outward, then disengage tabs from dashboard, and remove the side panel.
  3. Install in the reverse order of removal.

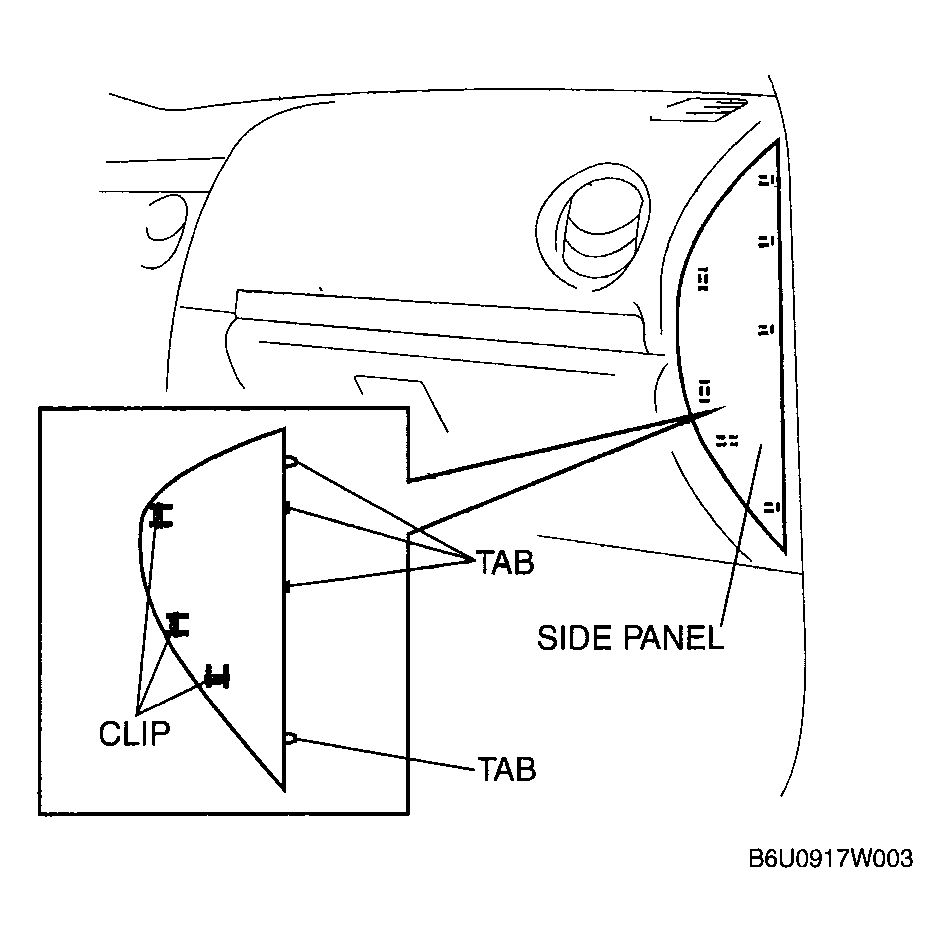

    Fig 1: Removing & Installing Side Panel
    G04327446Courtesy of MAZDA MOTORS CORP.
