Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

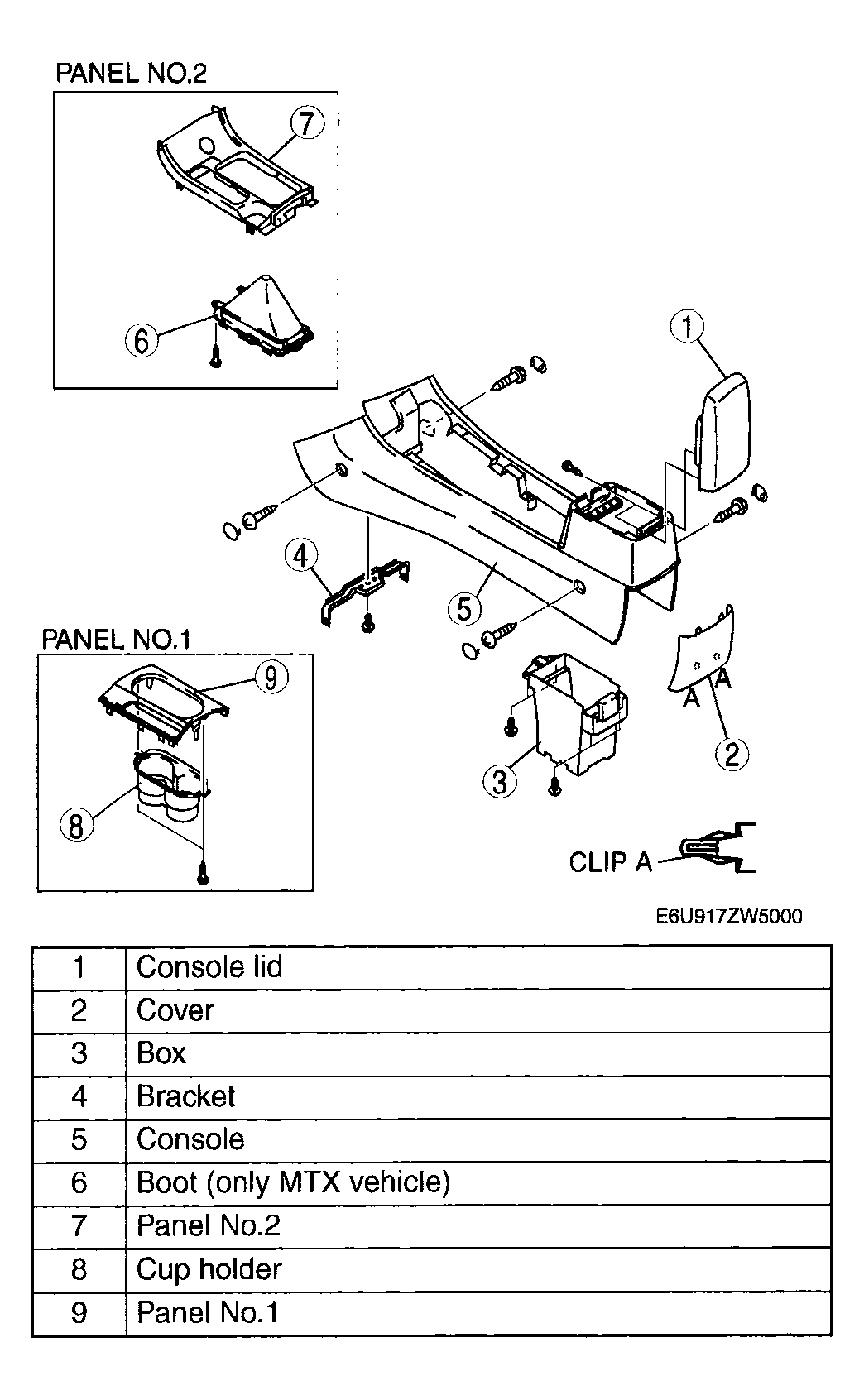

    Fig 1: Console Components
    G04327452Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
