Center Panel Unit Disassembly/Assembly

CAUTION:
  • Before disassembling the center panel unit, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.
  1. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.

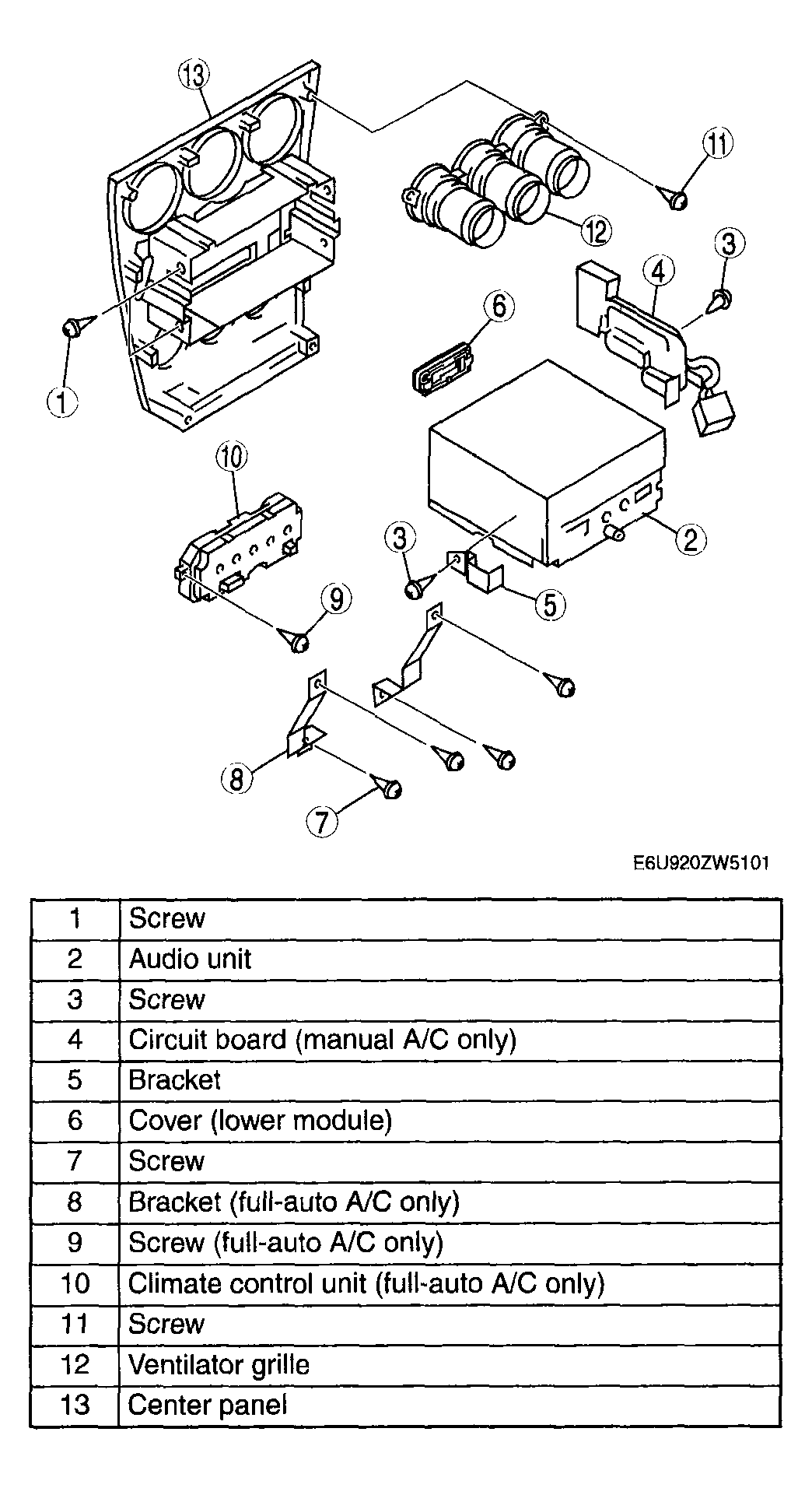

    Fig 1: Disassembling & Assembling Center Panel Unit
    G04327648Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
