Quick Diagnosis Chart

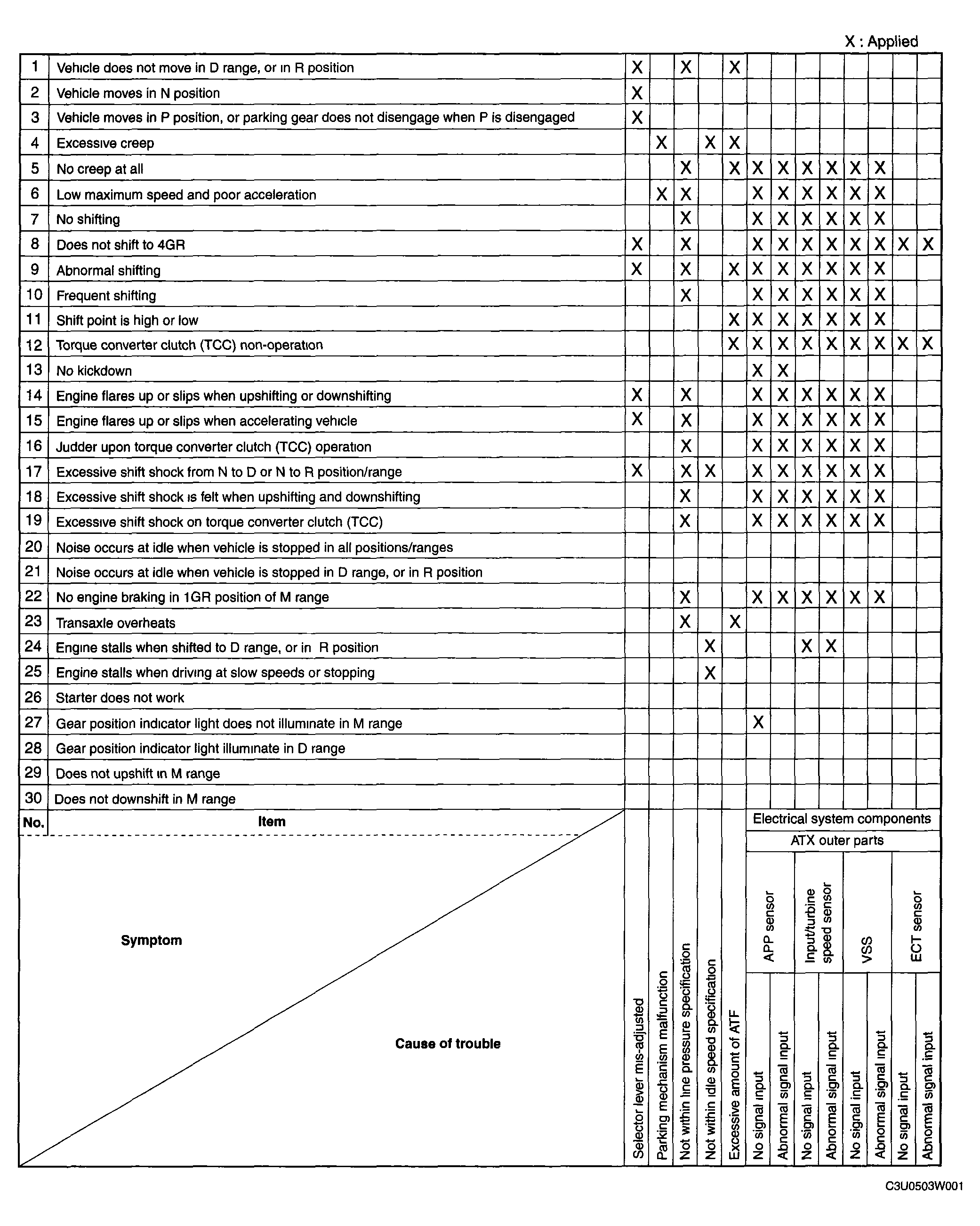

Fig 1: Quick Diagnosis Chart [FN4A-EL] (1 Of 3)
G04316401Courtesy of MAZDA MOTORS CORP.

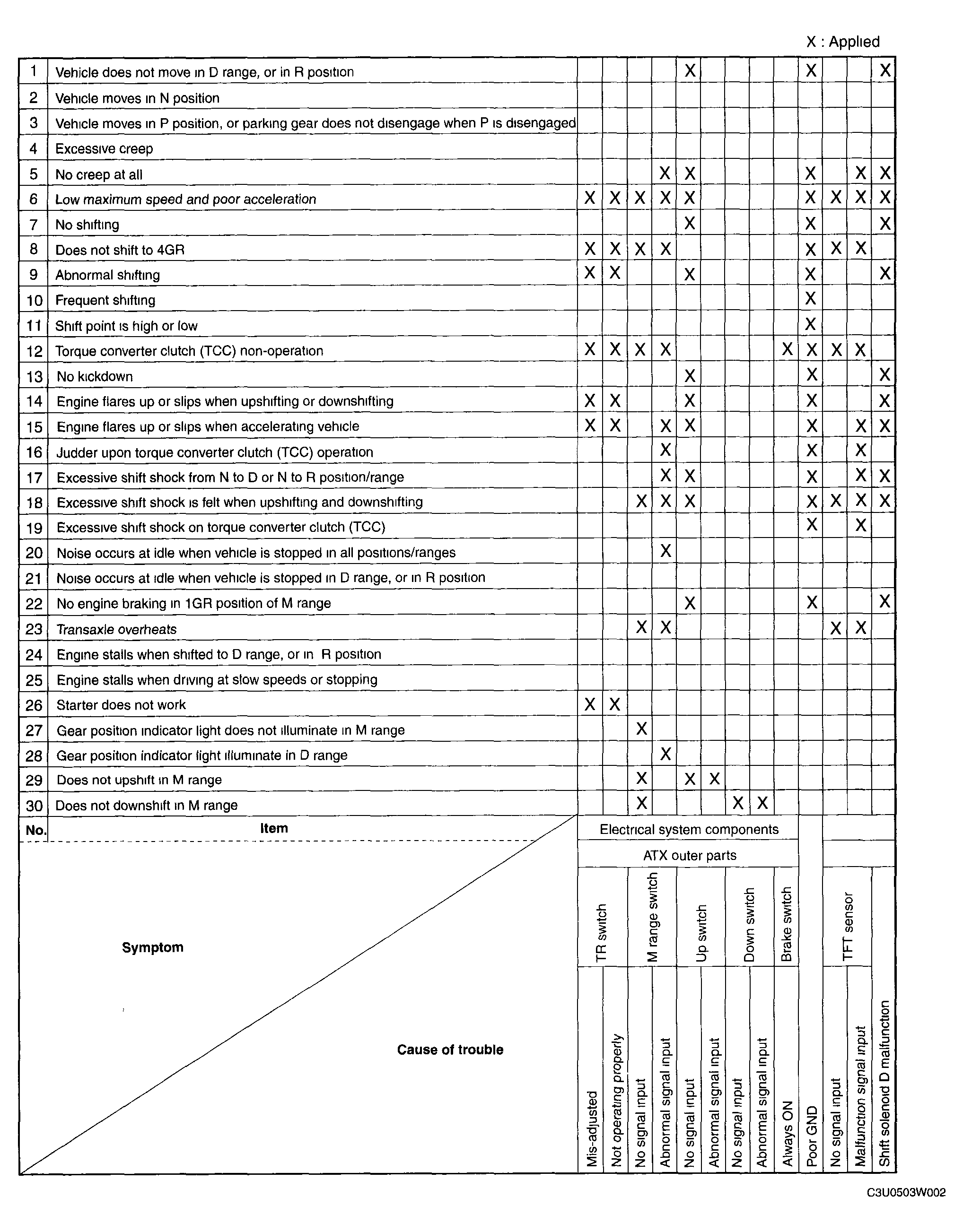

Fig 2: Quick Diagnosis Chart [FN4A-EL] (2 Of 3)
G04316402Courtesy of MAZDA MOTORS CORP.

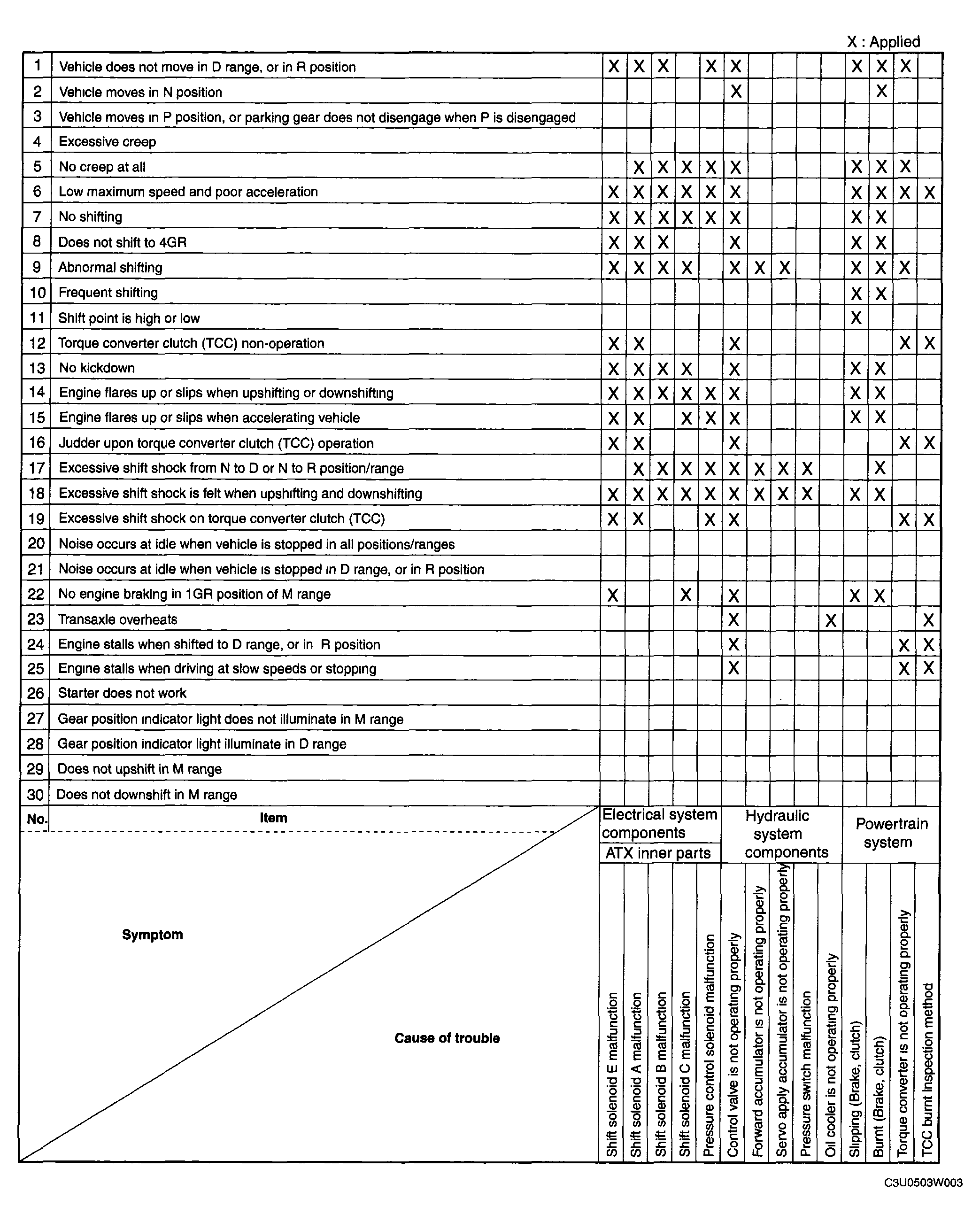

Fig 3: Quick Diagnosis Chart [FN4A-EL] (3 Of 3)
G04316403Courtesy of MAZDA MOTORS CORP.
