Selector Lever Inspection

Turn the ignition switch to the ON position (engine OFF).
With the brake pedal depressed, verify that there is a "click" at each range when shifted.
Verify that the selector lever can be shifted.
Verify that there is a "click" at each position when shifted from the P position to M range.

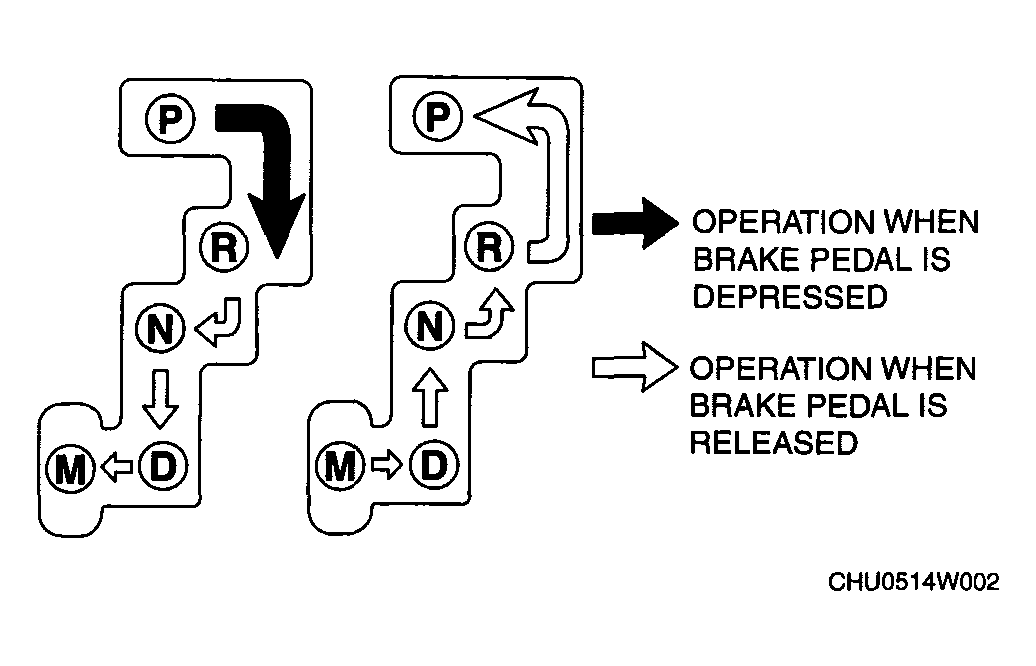

Fig 1: Brake Pedal Operation Pattern
Courtesy of MAZDA MOTORS CORP.
Verify that the positions of the selector lever and the indicator are aligned.
- If there is any malfunction, adjust the selector cable and TR switch. (See SELECTOR CABLE ADJUSTMENT ). (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FN4A-EL] ).
Verify that the vehicle operates in each selected range.

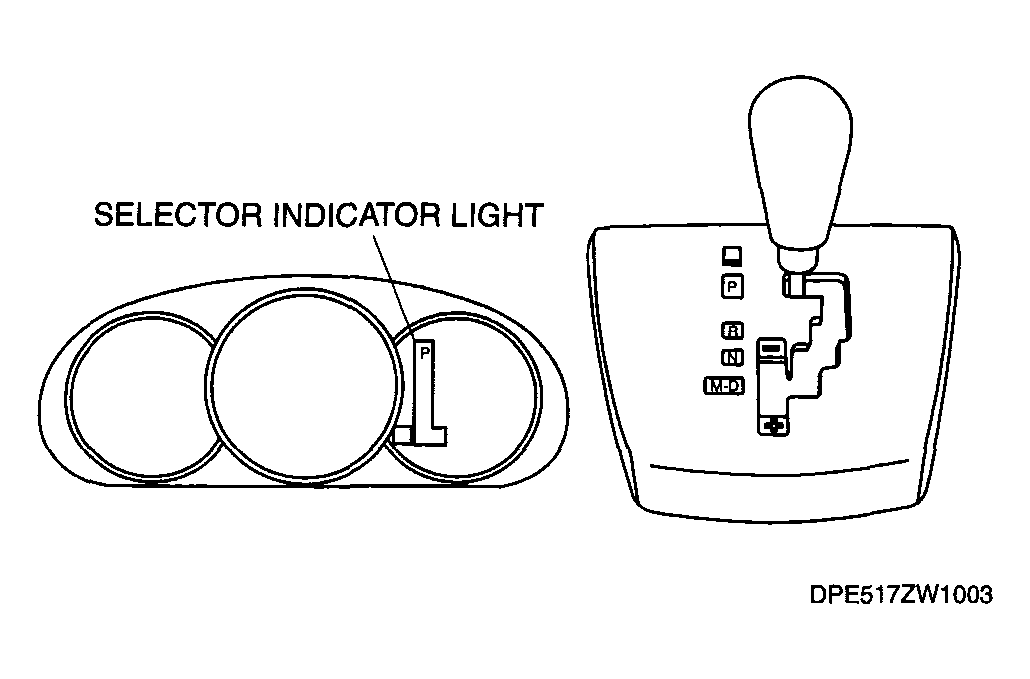

Fig 2: Identifying Selector Indicator Light
Courtesy of MAZDA MOTORS CORP.
