Selector Lever Component Installation Note

  1. Tighten the nut in the order as shown in the figure.

    Tightening torque

    15.7-22.5 N.m

    {1.6-2.2 kgf.m, 11.6-16.5 ft.lbf}

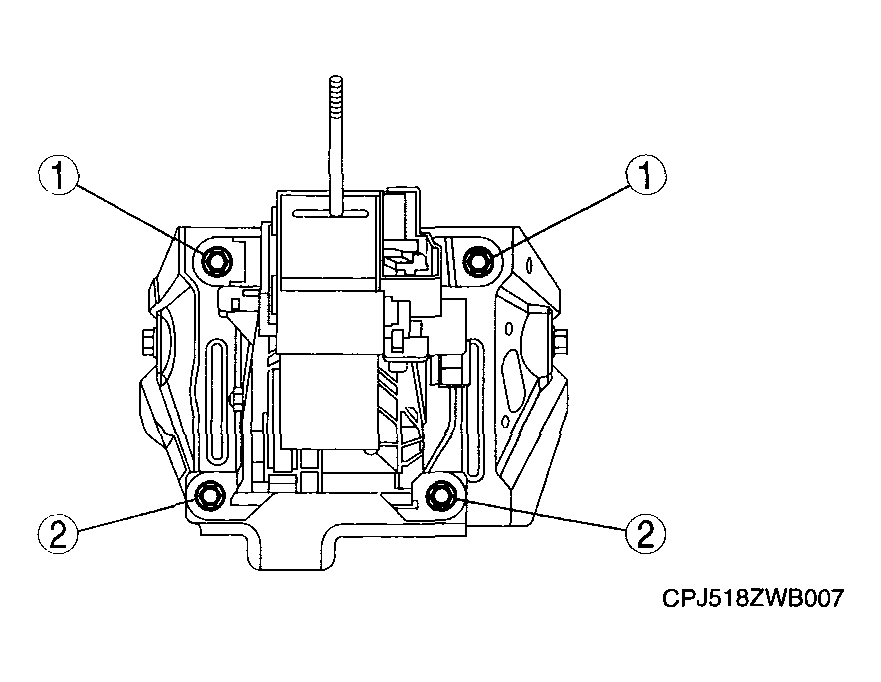

    Fig 1: Selector Lever Mounting Nut Tightening Sequence
    G04316576Courtesy of MAZDA MOTORS CORP.
