Selector Lever Component Removal/Installation: Notes

  1. Remove the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Remove the following parts:
    1. Battery, battery box and battery tray (See BATTERY REMOVAL/INSTALLATION [L3] ).
    2. Air cleaner component (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3] ).
    3. Side wall
    4. Heat insulator (front and center)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

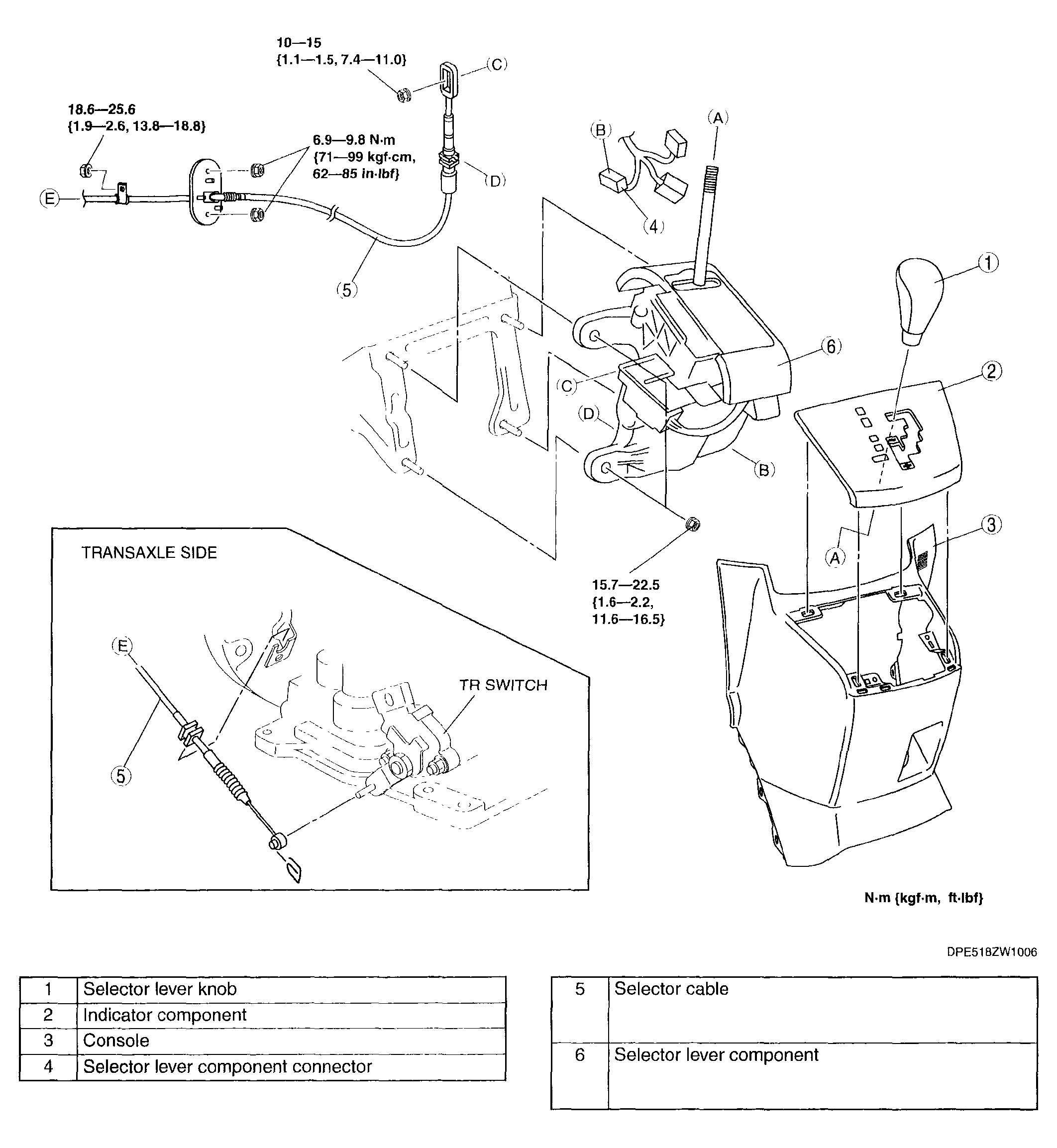

    Fig 1: Selector Lever Components & Torque Specification
    G04316574Courtesy of MAZDA MOTORS CORP.
