Adjuster Anchor Removal/Installation

WARNING:
  • The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable avoiding excessive impact to the lower part of the B-pillar.
  1. Remove the following parts:
    1. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION ).
    4. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION ).
    5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.

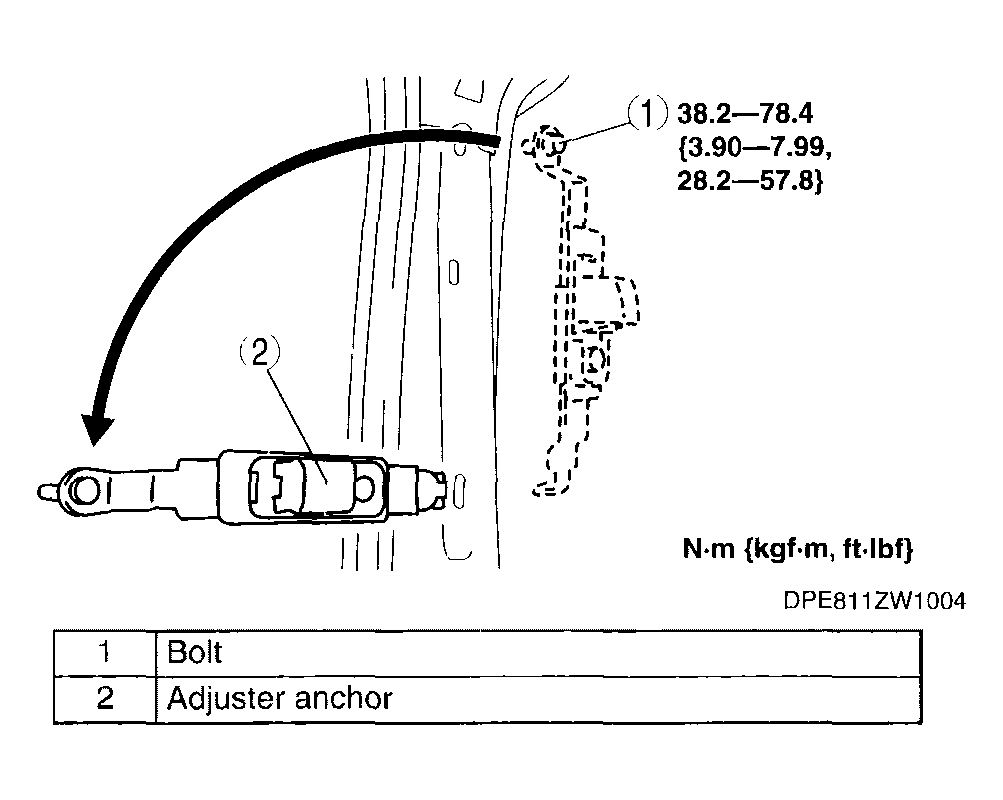

    Fig 1: Adjuster Anchor & Torque Specification
    G04316965Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
