DTC P0327: Notes

DTC P0327 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0327 KS circuit low input
DETECTION CONDITION
  • The PCM monitors input signal from the KS when the engine is running. If the input voltage at PCM terminals between 2Q and 2R is below 0.06 V  the PCM determines that the KS circuit has malfunction.

    • Diagnostic support note

  • This is a continuous monitor (CCM).
  • MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA is available.
  • DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • KS malfunction
  • Connector or terminal malfunction
  • Open circuit or short to ground in wiring harness between KS connector terminal A and PCM terminal 2Q
  • Open circuit or short to ground in wiring harness between KS connector terminal B and PCM terminal 2R
  • Short KS two wires
  • PCM malfunction

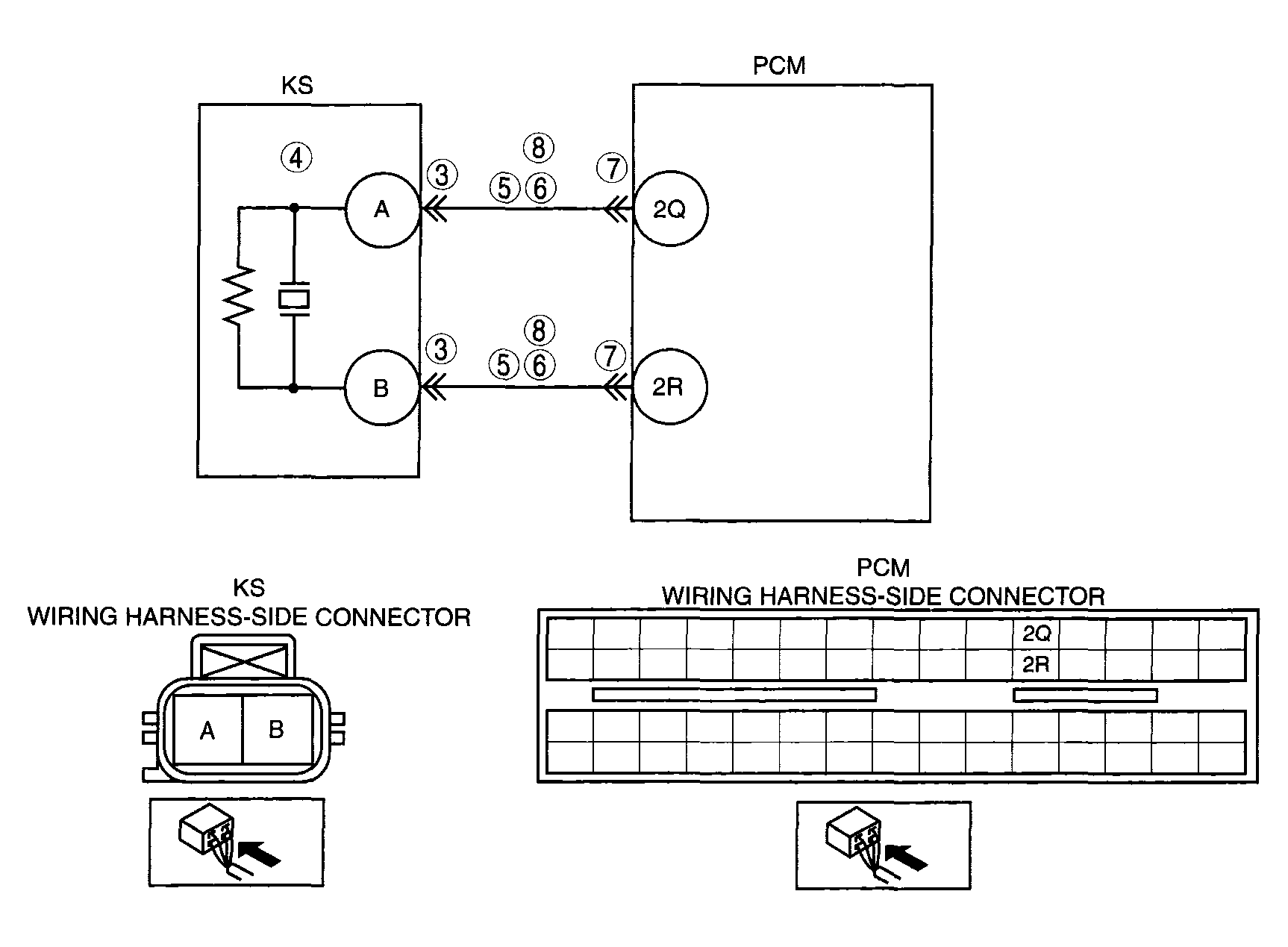

G04315717
