Resistance Inspection
- Turn the ignition switch to the LOCK position.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
- Disconnect the negative battery cable.
- Disconnect the fuel injector connector.

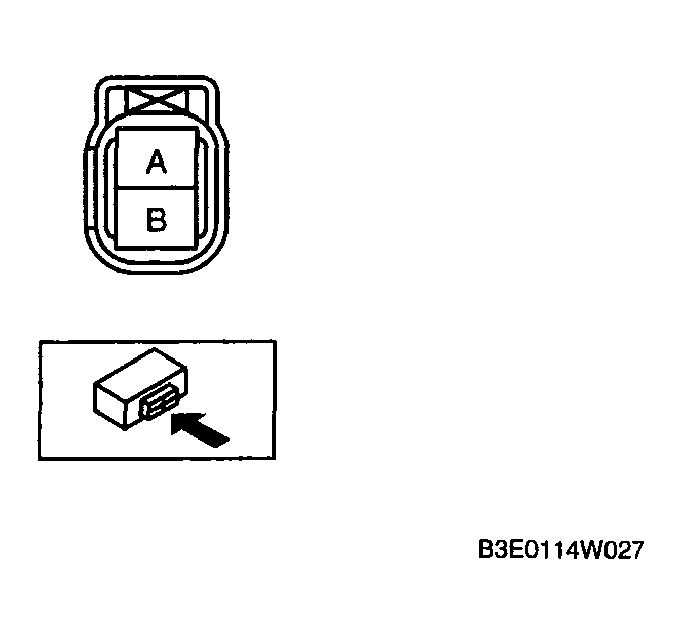

- Inspect the resistance between fuel injector terminals A and B using a tester.
- If within the specification, perform the "Circuit Open/Short Inspection".
- If not within the specification, replace the fuel injector.
Fuel injector resistance
11.4-12.6 ohms [20 °C {68 °F}]
