Battery Cover Installation Note

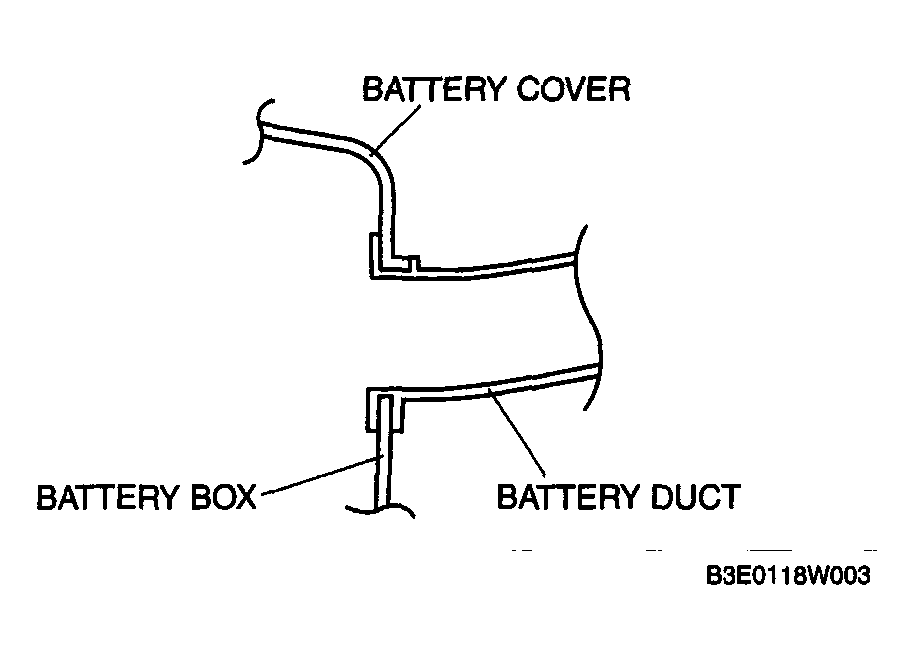

Install the battery duct between the battery cover and the battery box.

Fig 1: Installing Battery Duct Between Battery Cover And Battery Box
Courtesy of MAZDA MOTORS CORP.

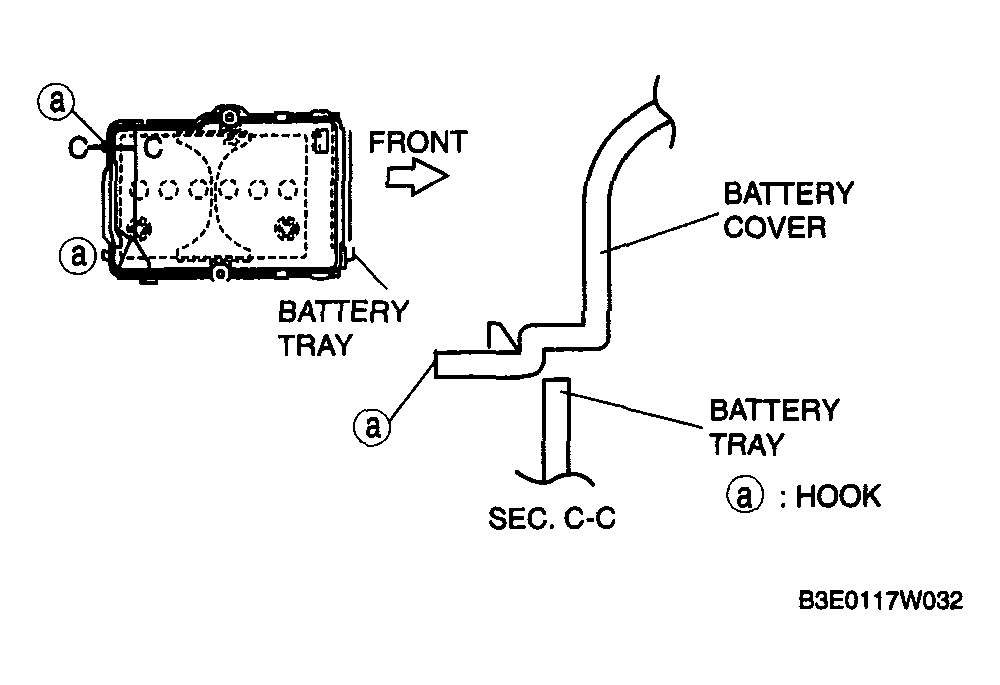

Install with battery cover hooks A aligned with the battery tray holes at two points.

Fig 2: Installing With Battery Cover Hooks A
Courtesy of MAZDA MOTORS CORP.

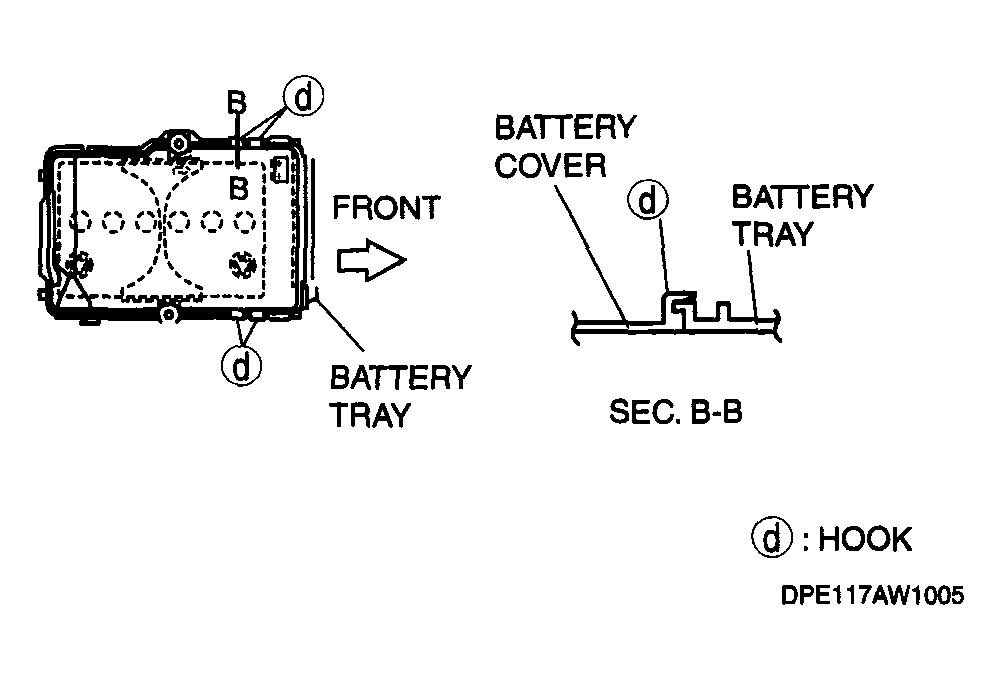

Install with battery cover hooks D aligned with the battery tray flange at four points.

Fig 3: Installing With Battery Cover Hooks D
Courtesy of MAZDA MOTORS CORP.

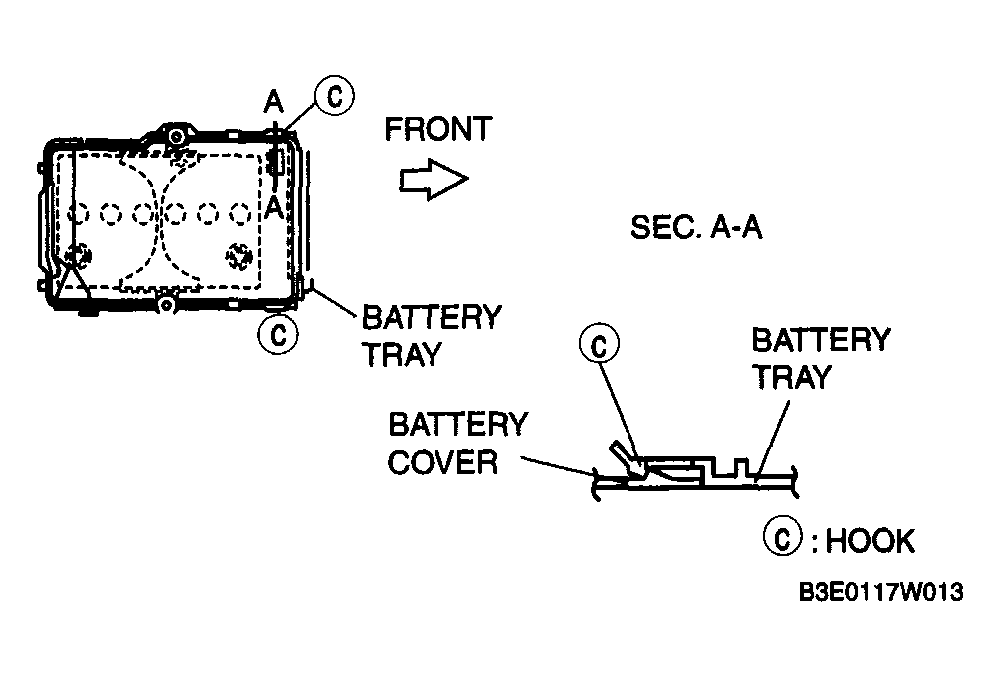

Set the battery cover to battery tray hooks C at two points.

Fig 4: Setting Battery Cover To Battery Tray Hooks C
Courtesy of MAZDA MOTORS CORP.
