Liftgate Latch Switch Connector End View

Fig 1: Liftgate Latch Switch Connector End View
G04317239Courtesy of MAZDA MOTORS CORP.

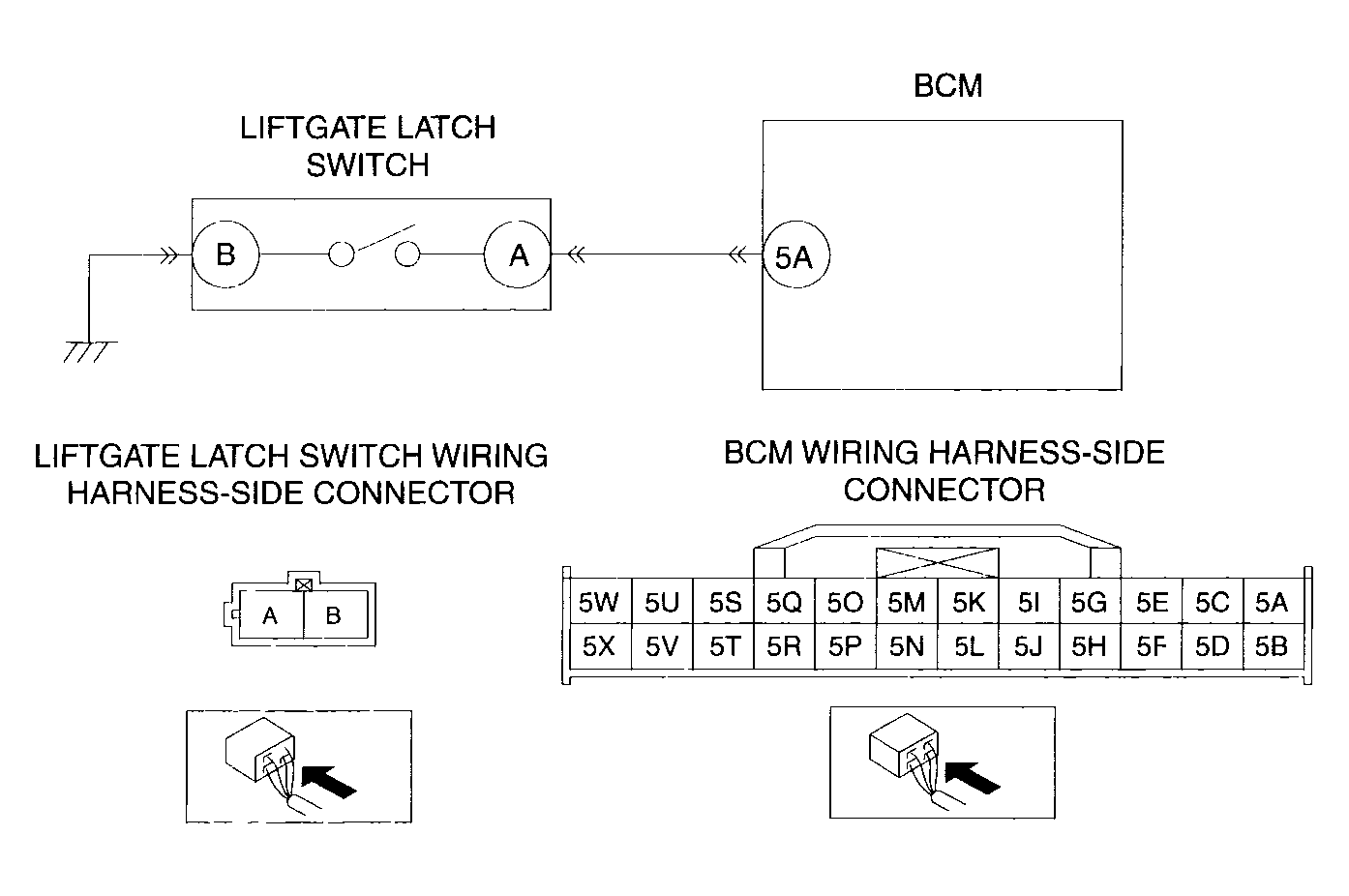

Fig 1: Liftgate Latch Switch Connector End View
G04317026Courtesy of MAZDA MOTORS CORP.
