Outer Mirror Glass Installation

  1. Connect the connectors, (vehicles with heated outer mirrors)
  2. Press part A on the outer mirror glass and install pin A
  3. Press part B on the outer mirror glass and install pins B.

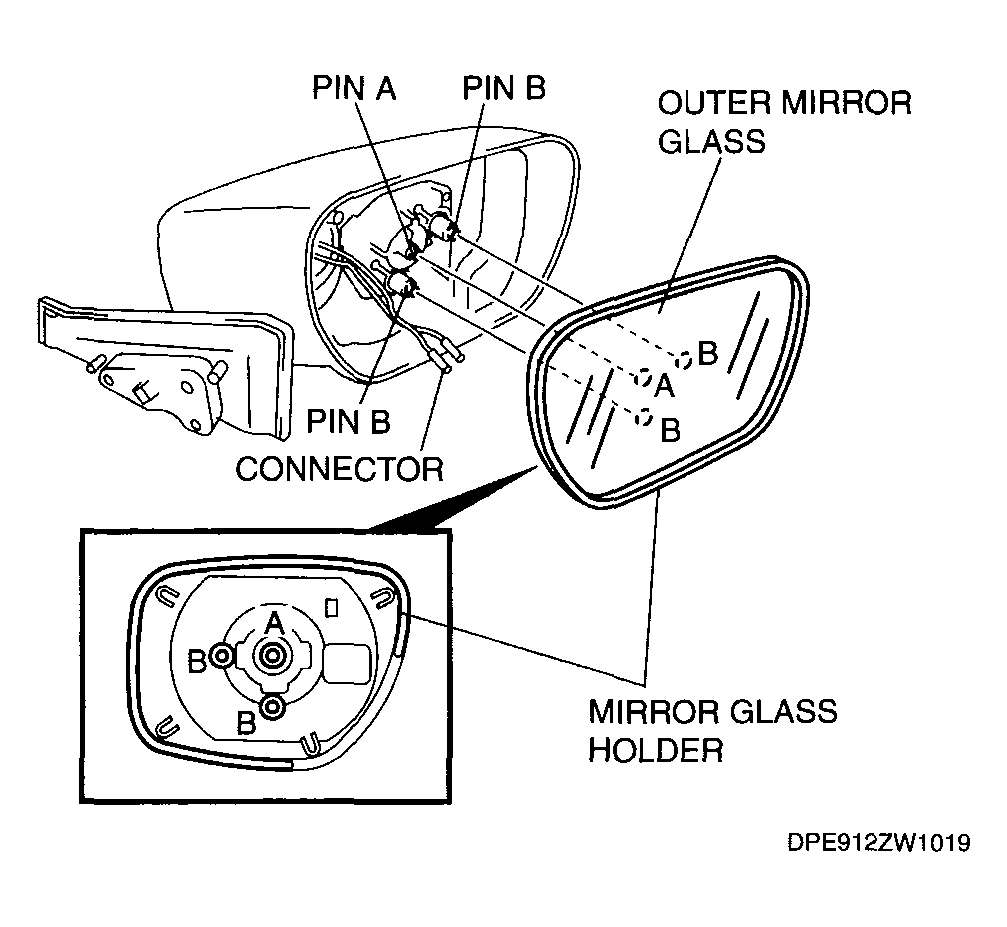

    Fig 1: Installing Pins A And B
    G04317175Courtesy of MAZDA MOTORS CORP.
