Third-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

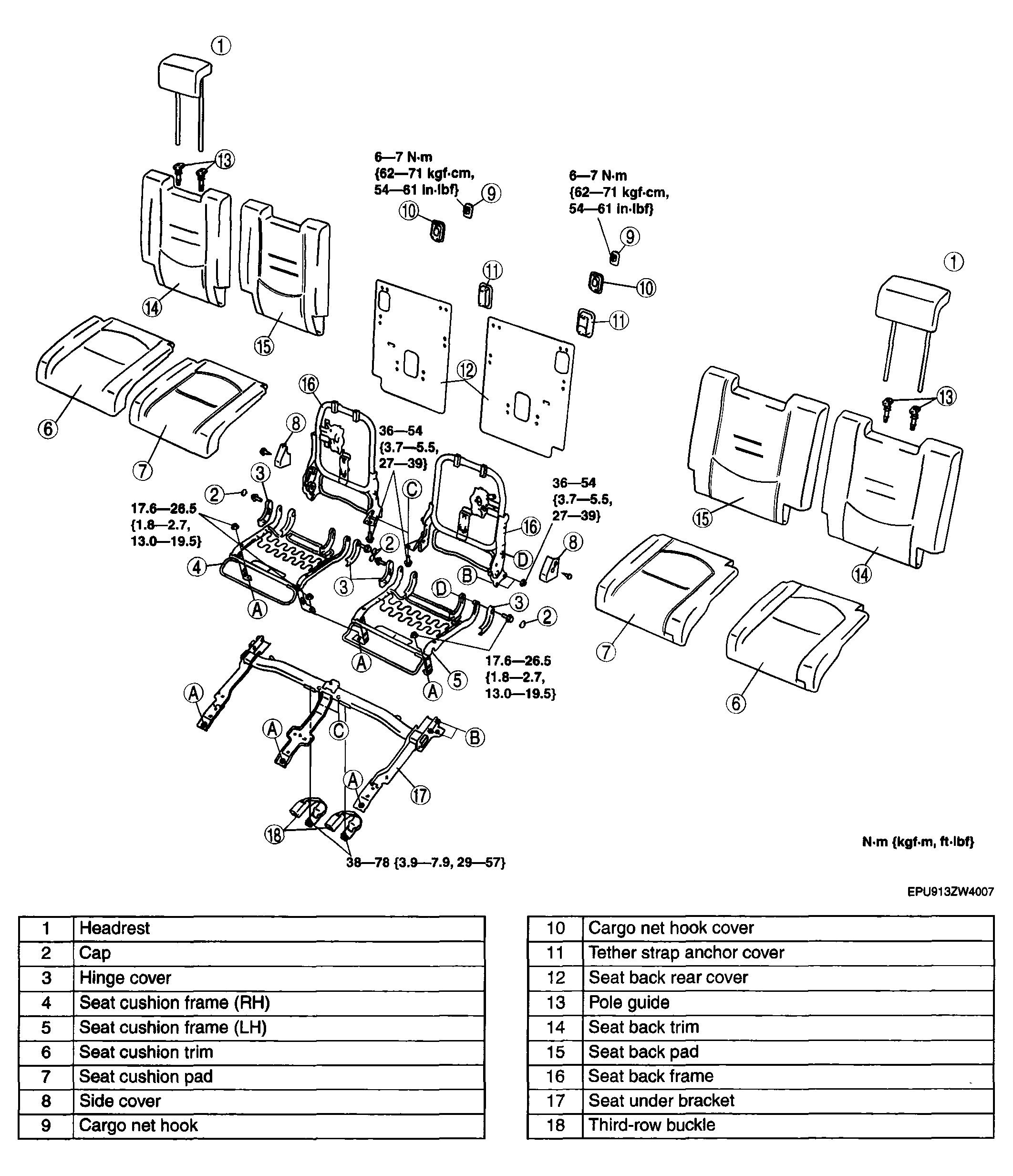

    Fig 1: Third-Row Seat Components & Torque Specification
    G04317199Courtesy of MAZDA MOTORS CORP.
