Driver's Side

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

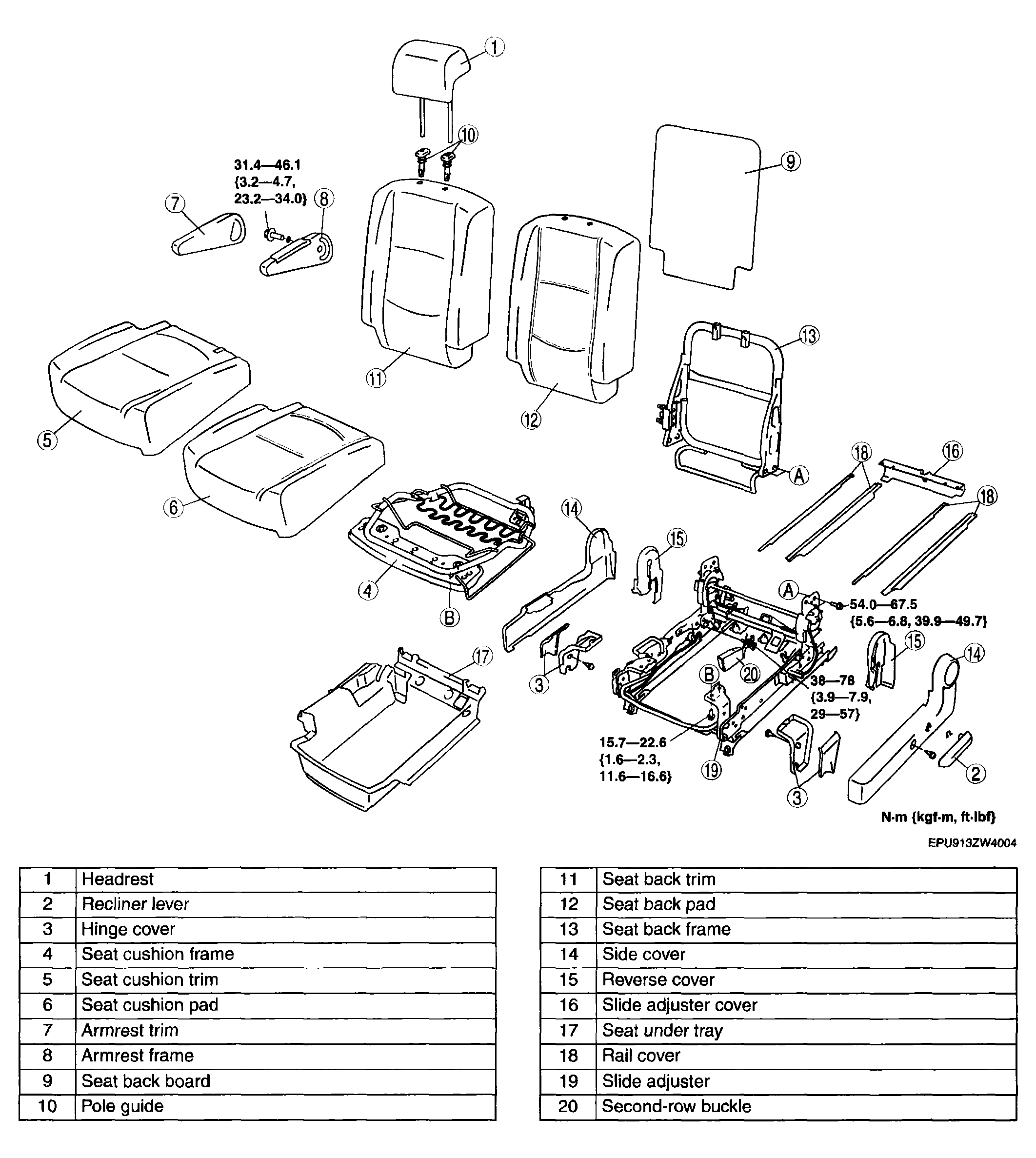

    Fig 1: Second-Row Driver's Side Seat & Torque Specification
    G04317196Courtesy of MAZDA MOTORS CORP.
