Liftgate Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION ).
  2. Remove the bolts, then remove the liftgate lock striker.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate. (See LIFTGATE ADJUSTMENT ).

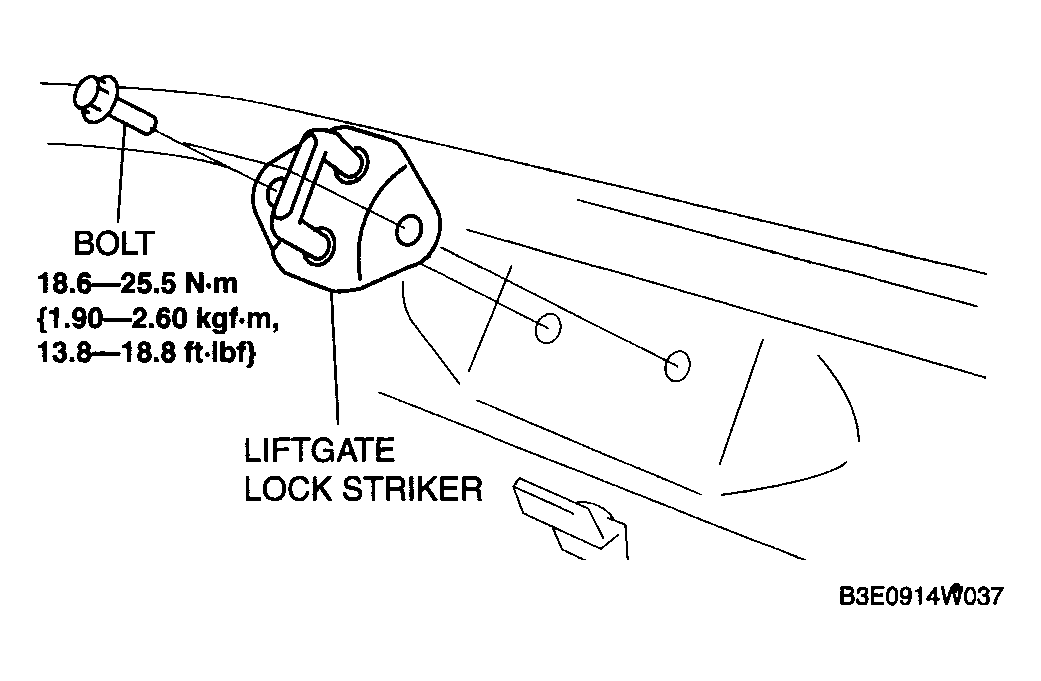

    Fig 1: Liftgate Lock Striker Mounting Bolt & Torque Specification
    G04317240Courtesy of MAZDA MOTORS CORP.
