Front Door Key Cylinder Removal/Installation

  1. Disconnect the rod.
  2. Remove the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION ).
  3. Turn the key cylinder in the direction indicated by the arrow and move the tab to the notch.
  4. Pull the key cylinder outward to remove it.
  5. Install in the reverse order of removal.

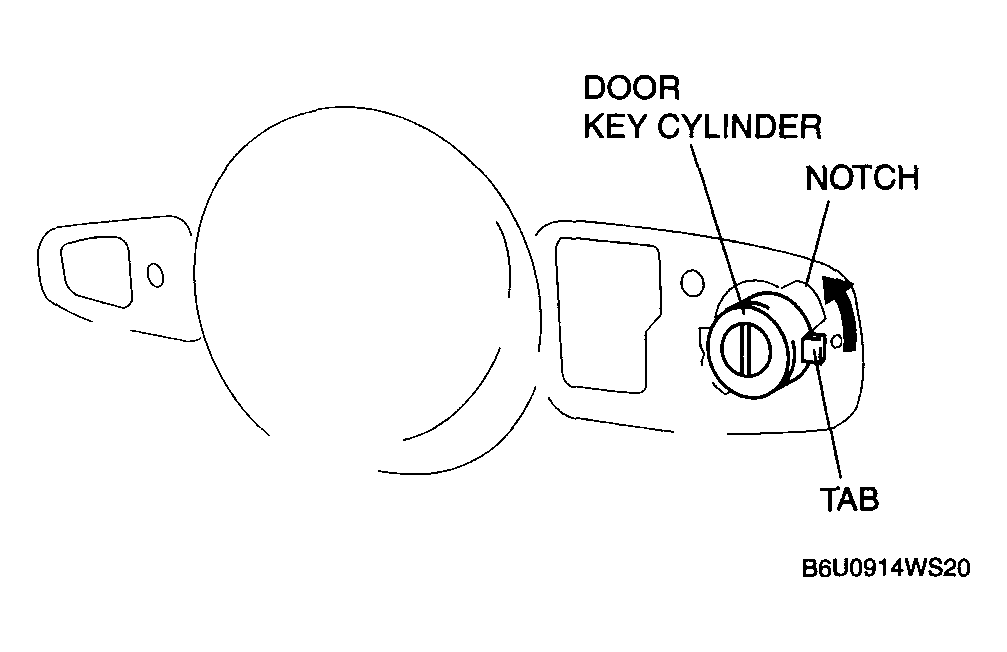

    Fig 1: Removing/Installing Front Door Key Cylinder
    G04317216Courtesy of MAZDA MOTORS CORP.
