Audio Control Switch Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION ).
  4. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table.

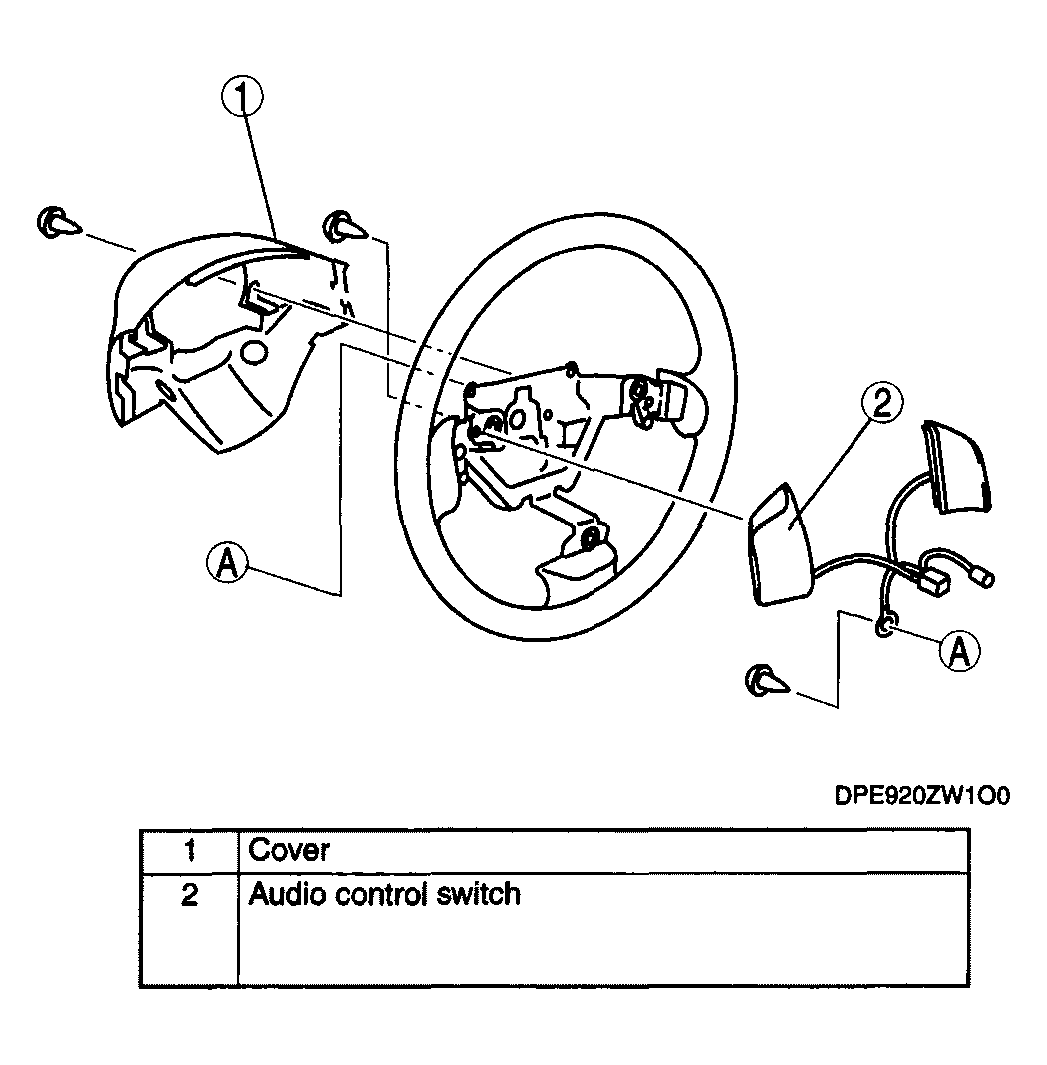

    Fig 1: Removing Audio Control Switch
    G04317470Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
