Abs Location Index

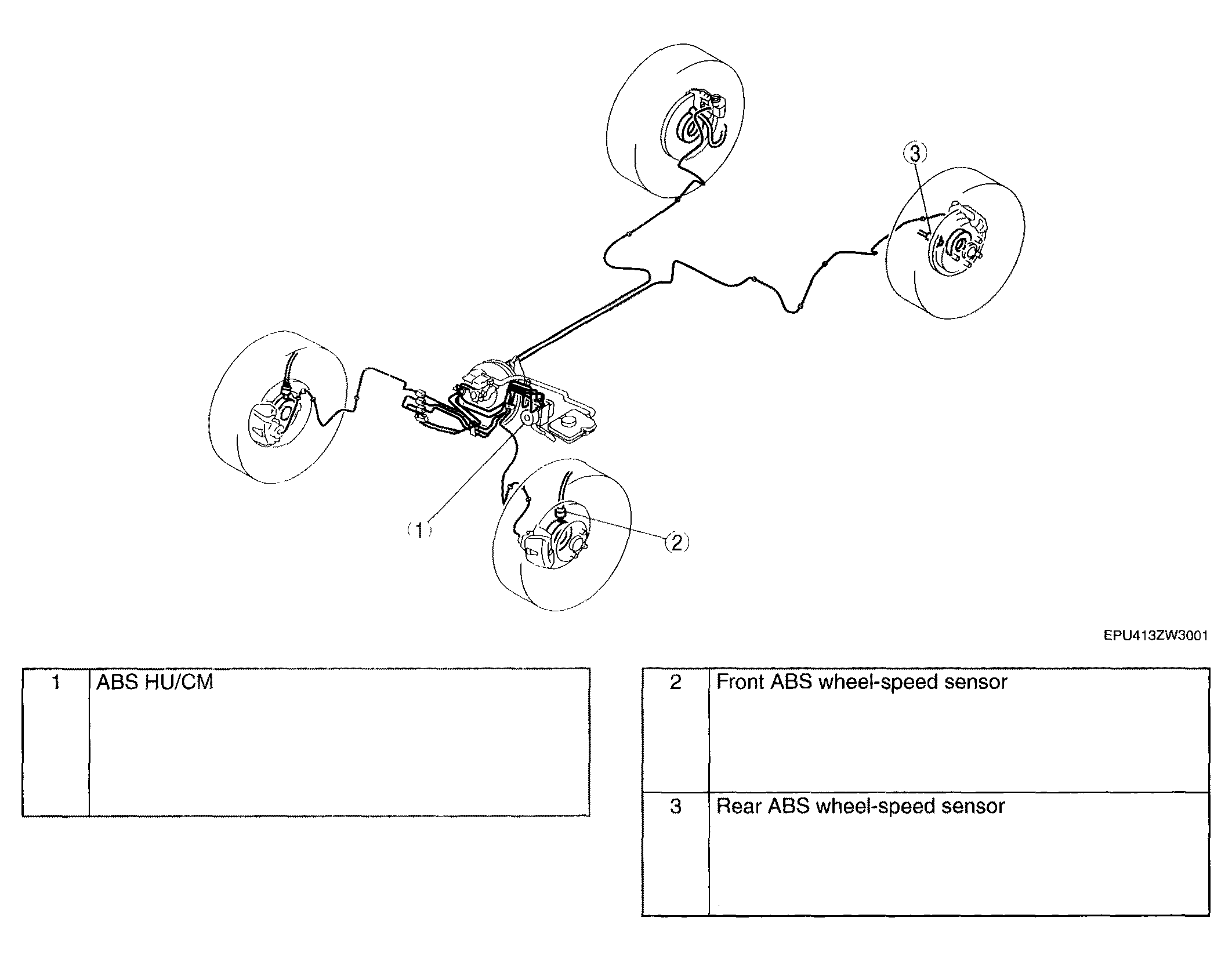

Fig 1: Identifying ABS Components Location

G04316354

Courtesy of MAZDA MOTORS CORP.
