Second-Row Buckle Removal/Installation

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION ).
  2. Remove the seat under tray. (See SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY ).
  3. Remove the bolt.
  4. Detach the spring hook.
  5. Detach the rod.
  6. Install in the reverse order of removal.

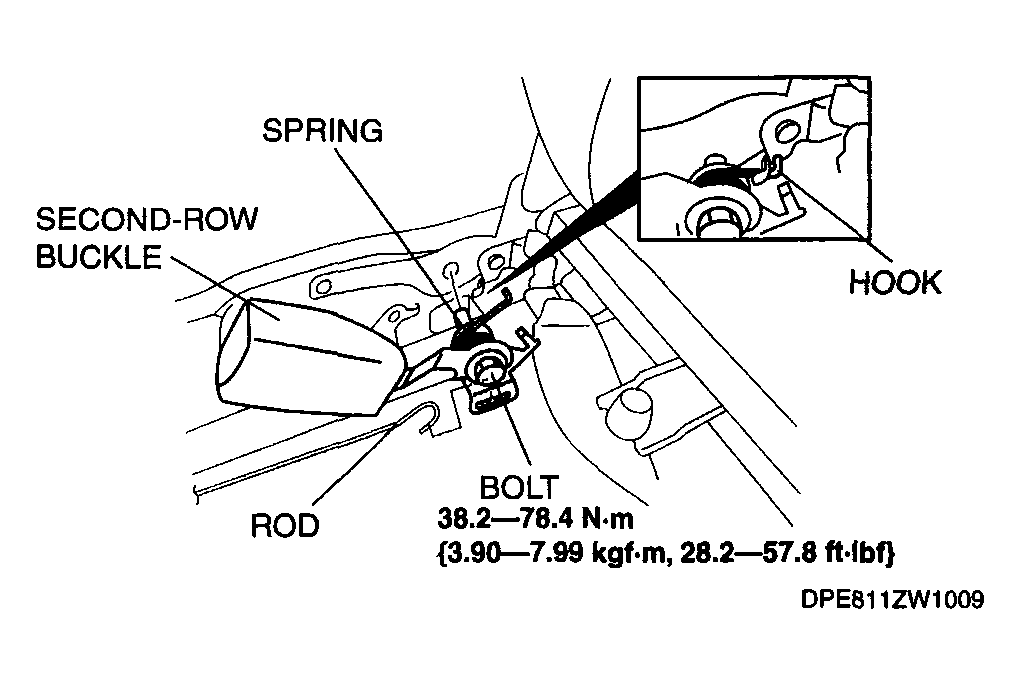

    Fig 1: Second-Row Buckle & Torque Specification
    G04316973Courtesy of MAZDA MOTORS CORP.
