Front Buckle Removal/Installation

  1. Turn the ignition switch to the LOCK position.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  3. Disconnect the negative battery cable.
  4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION ).
  5. Detach the tab as shown in the figure and remove the connector from the front seat connector.

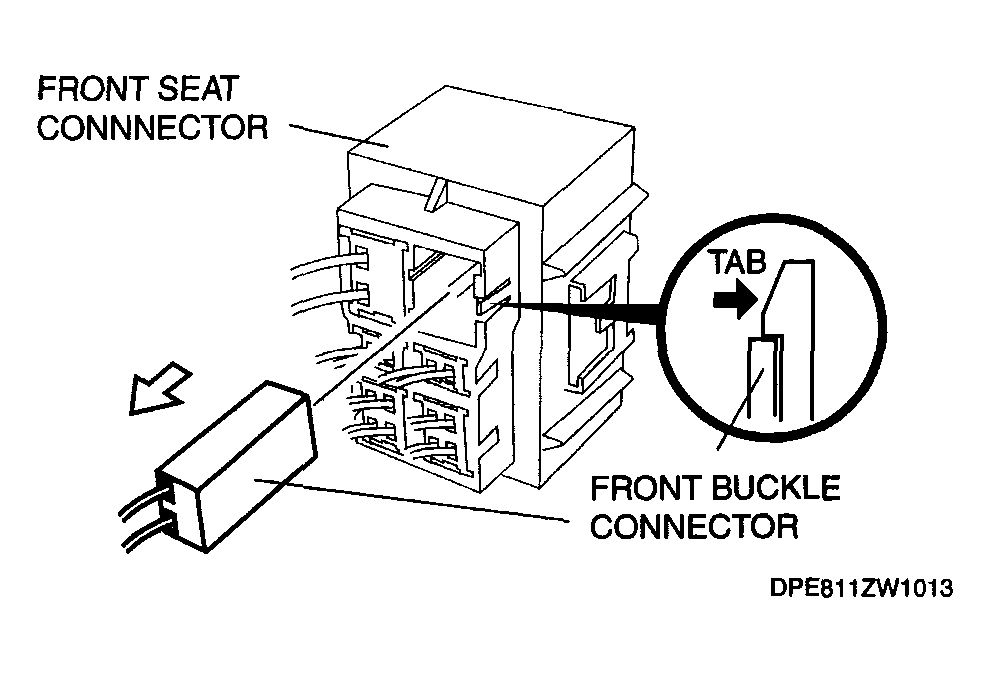

    Fig 1: Removing Connector From Front Seat Connector
    G04316971Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.

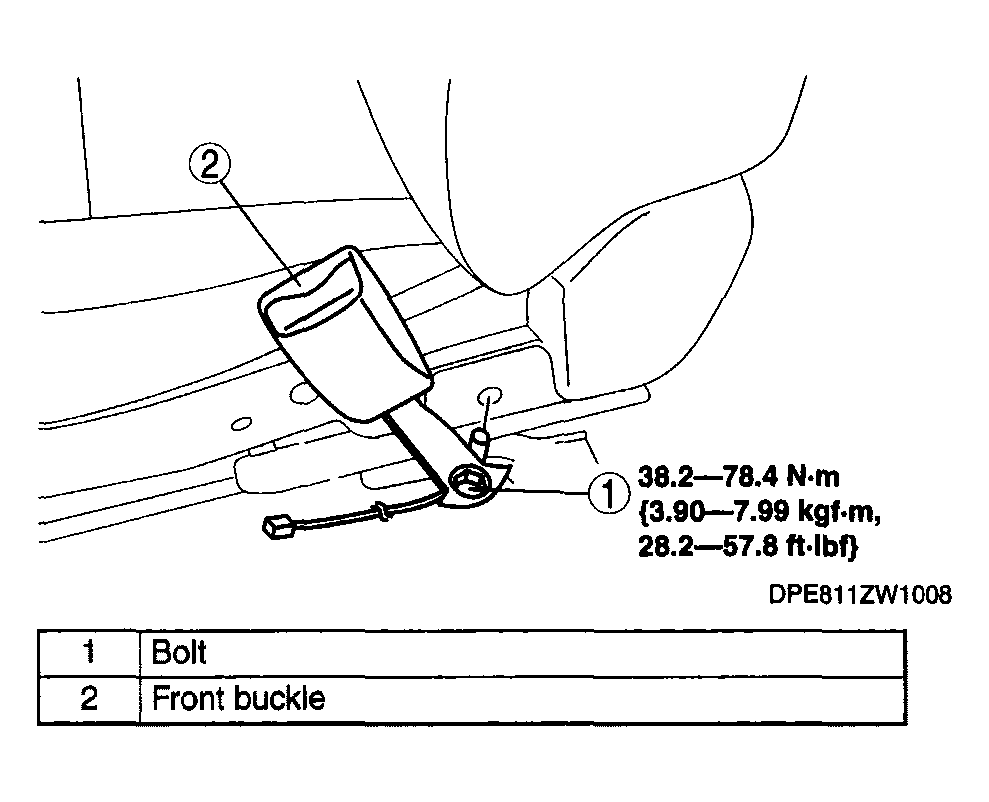

    Fig 2: Front Buckle & Torque Specification
    G04316972Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Verify that the air bag system warning light illuminates for approx. 6 s  and then goes out when the ignition switch is turned to the ON position.
